1. ELECFREAKS TOOCA Laser 1#

1.1. Introduction#

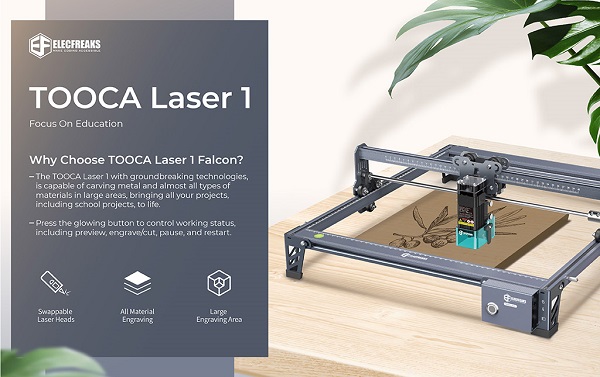

The TOOCA Laser 1 with groundbreaking technologies, is capable of carving metal and almost all types of materials in large areas, bringing all your projects, including school projects, to life. Press the glowing button to control working status, including preview, engrave/cut, pause, and restart.

../_images/tooca-laser-1-01.png

1.3. Product parameters#

Model TOOCA Laser 1
Machine size 568×632×198mm
Net weight 3.2kg
Operation system Windows/MacOS
Input 100-240V~50-60Hz
Output DC24.0V3.0A
Range of operating temperature 0℃-35℃
Safety certification IEC60825, FDA, CE, RoHS, FCC, UKCA, UL and PSE
Engraving size 400mm*415mm
Laser source Semiconductor laser unit
Laser wave length 455±5nm
Laser power 5W/10W
Safety class Class IV(FDA classification standard)
Laser engraving software LaserGRBL,LightBurn
Format files jpeg, jpg, png, pmp, svg and dxf
Type of supporting materials Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc

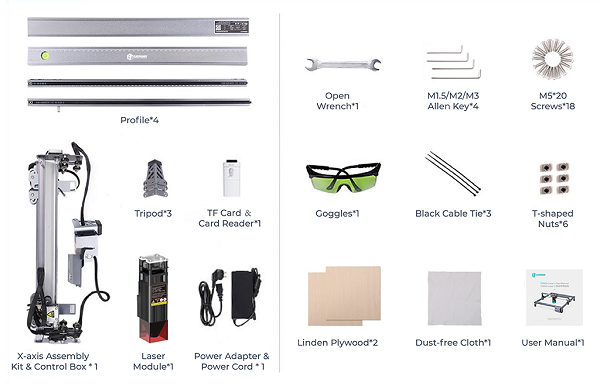

1.4. Product List#

../_images/tooca-laser-1-02.png
