9. case 06 Bluetooth Control#

9.1. Our Goal#

Control the movement of our motor:bit car via Bluetooth.

9.2. Material#

1 x motor:bit smart car kit

1 x bitty controller

9.3. Background Knowledge#

Bluetooth is a wireless technology standard for exchanging data over short distances (using short-wavelength UHF radio waves in the ISM band from 2.4 to 2.485 GHz[3]) from fixed and mobile devices, and building personal area networks (PANs). We can use Bluettoth to connect multiple devices which resolves the difficulty of simultanuous data transmission.

Bittysoftware provides mobile apps and tools for devices like BBC micro:bit.

Bluetooth Event#

Each time when we received a data via Bluetooth, it will trigger an event. Then the receiver will handle the happened event according to an event table.

An event can be divided into a source and an event value. The receiver will obtain the event from its source and judge what’s happened according to the event value.

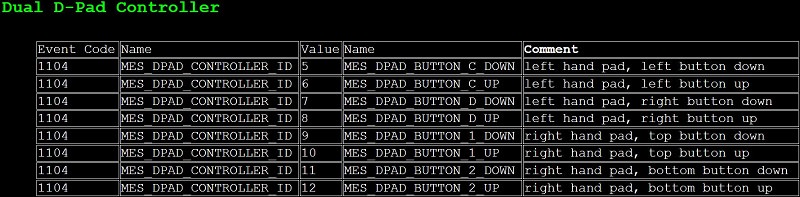

Picture below is an event table for D-pad controlling joystick.

../../_images/hrxqpWo.jpg

9.4. Software#

Microsoft MakeCode

9.5. Operation Steps#

Step 1: APP Download#

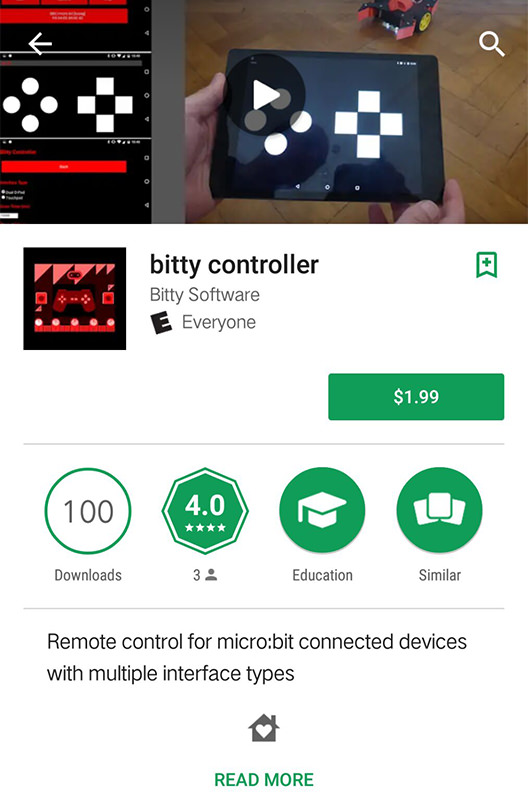

  1. Android Device: Download bitty controller app from Google play.

../../_images/moQ7aYu.jpg

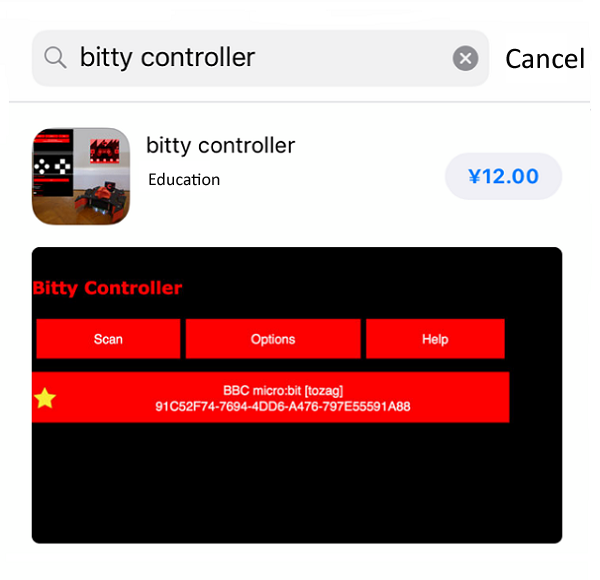

  1. IOS Device: Download bitty controller app from APP store.

../../_images/LqEfbhE.png

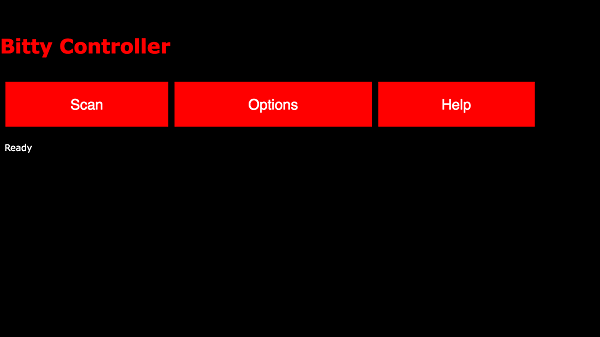

Below is the interface of this APP:

../../_images/ZvHqv7T.png

Note: Due to the limitation of IOS system, we need to download other software for Bluetooth connection.

For more information, please refer to micro:bit IOS Bluetooth Connection User Guide.

Step 2: Set Bluetooth Mode#

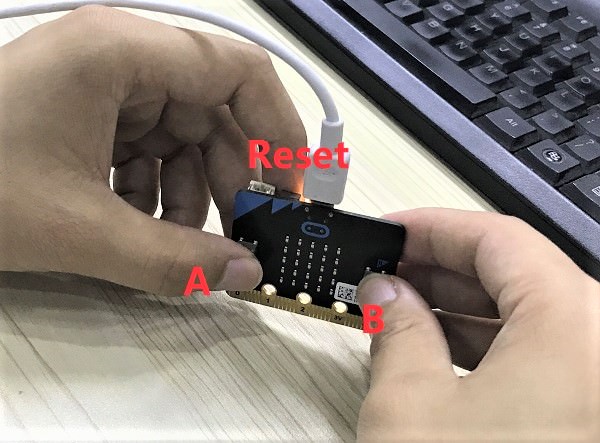

To activate the Bluetooth mode of micro:bit, we need to press button “A+B” simultaneously and then press reset button. Later, micro:bit screen will display PAIRING MODE! and a special character. This character is unique to each micro:bit. It is the special indentifier for Bluetooth.

../../_images/ceES90z.jpg

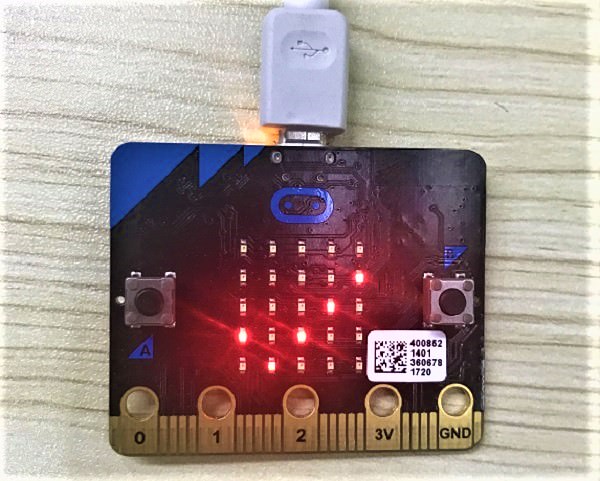

Once paired successfully with your Android or IOS device, your micro:bit screen will display a “√”(a tick).

../../_images/5luUYc7.jpg

Step 3: Add Package#

Click Advanced in the code drawer of MakeCode to see more options.

../../_images/LjMR5IU1.png

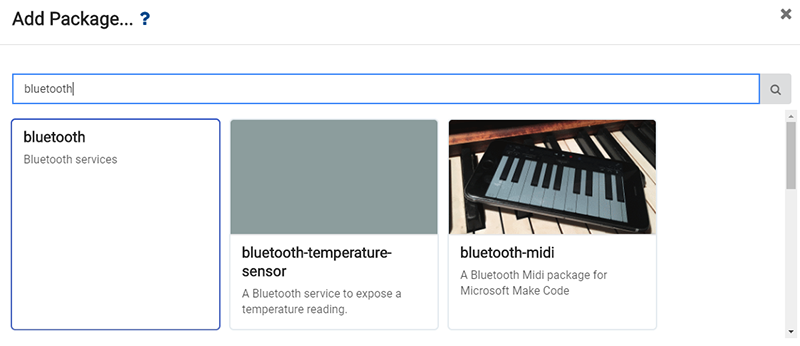

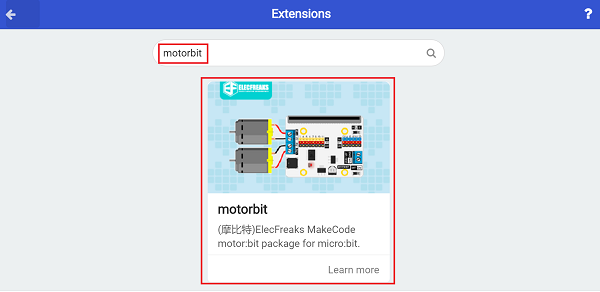

To program for Bluetooth and motor:bit, we have to add two packages. Find Add Package in the bottom of code drawer and click it. This will pop up a dialogue box. Search for “Bluetooth” and “motorbit” and then click to download these packages.

../../_images/4eJ7Jgx.png ../../_images/LTJUxsR.png

Note: If you get a hint that some packages will be deleted due to the problem of incompatibility, you can either follow the prompts, or create a new project in the project menu.

Step 4: Write Blocks Program#

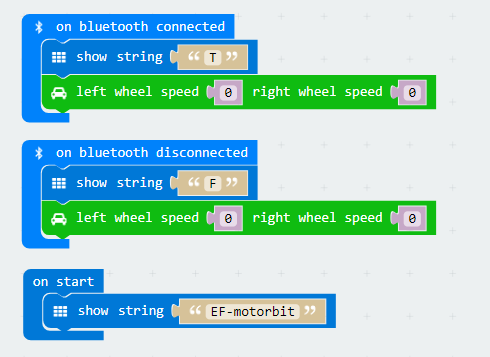

When startup, micro:bit will display a string “EF-motorbit”. Once connected Bluetooth, micro:bit screen will display a “T”. Disconnect Bluetooth, then it will display an “F”.

To prevent bad result caused by error operations, we need to set the motor speed to 0 when Bluetooth is connected or disconnected.

../../_images/LdDCffz.png

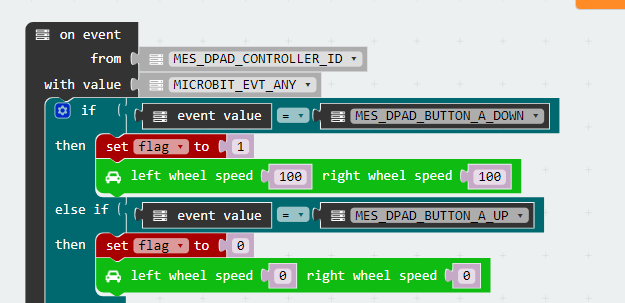

Set event source block and name it MES_DPAD_CONTROLLER_ID, which is the joystick controlling panel of the APP.

Name the event value MICROBIT_EVT_ANY so that it can obtain all event information.

If the event value is MES_DPAD_BUTTON_A_DOWN, we can know from the event table above that the event is the left top circle button is pressed. Thus, the operation status is 1 (move forward). At the same time, set both motors run at its full speed to make the car move forward.

If the event value is MES_DPAD_BUTTON_A_UP, we know from the event table above that the left top circle button is released. Thus, the operation status is 0 (stop). At the same time, set the speed of both motors to 0 and the car stops.

../../_images/a1tboRB.png

Create a variable and name is flag, which stands for the car movement status. When flage is 1, it means the car is moving forward.

If the event value is MES_DPAD_BUTTON_3_DOWN, we can known from the table above that the right square button is pressed. Thus, the car will turn right.

If the event value is MES_DPAD_BUTTON_4_DOWN when flag is 1, we can know from the table above that the left square button is pressed. Thus, the car will turn left.

If none of the above two situations happened when flag is 1, then set the speed of both motors to 100 and the car will move forward at its full speed.

../../_images/cvXAfCv.png

Step 5: Bluetooth Connection#

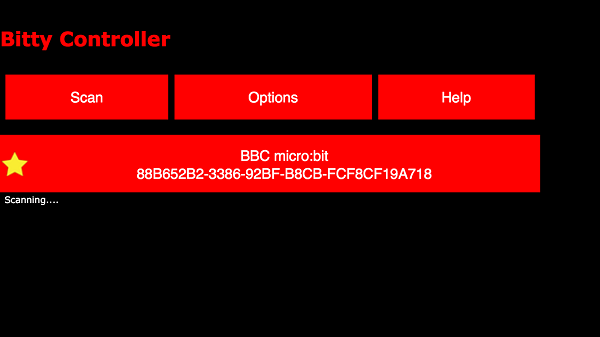

Once micro:bit Bluetooth mode is activated, let’s start to pair. Click scan in the APP interface to search for micro:bit signal.

../../_images/rLS50GM.png

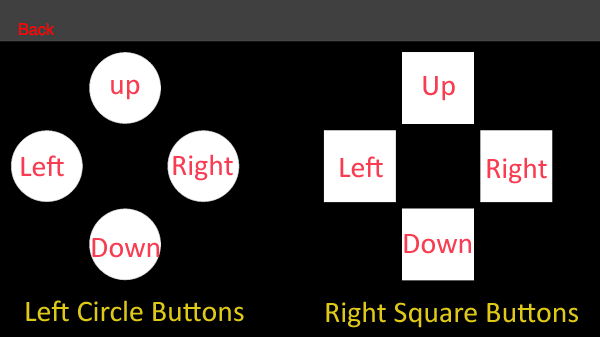

Click on the micro:bit obtained to enter into joystick mode. See picture below.

../../_images/gaPL6bX.png

Enjoy yourself!

Warm Tips: For more detailed operations about bitty controller, please refer to bitty controller.

Program#

Link of the whole program: https://makecode.microbit.org/_V4YJ2i9LkYoi

You can also download it from the page below.

Note: Low motor speed will affect its rotation.

9.6. Result#

Once Bluetooth paired successfully, micro:bit screen will display a “T”. Disconnect the Bluetooth, it will display an “F”.

Press the left top button on the joystick interface, the car will move forward. Press the left or right button in the right side of joystick, the car will reverse to the left or right.

9.7. Think#

How to write our code if we want to reverse our car or even make it turn left ot right ?
