10. Red LED(EF05009)#

10.1. Introduction#

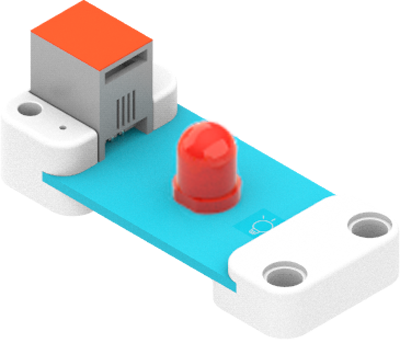

Red LED is usually used as the indicator.

../_images/05009_01.png

10.2. Characteristic#


  • Designed in RJ11 connections, easy to plug.

10.3. Specification#


Item Parameter
SKU EF05009
Connection RJ11
Type of Connection Analog input
Working Voltage 3.3V
Size 55.8 x 23.8 mm

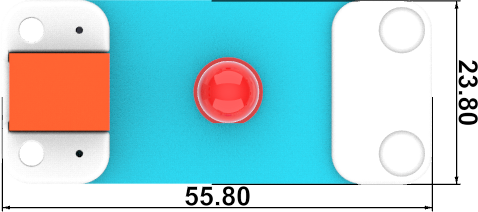

10.4. Outlook#


../_images/05009_02.png

10.5. Quick to Start#


10.5.1. Materials Required and Diagram#

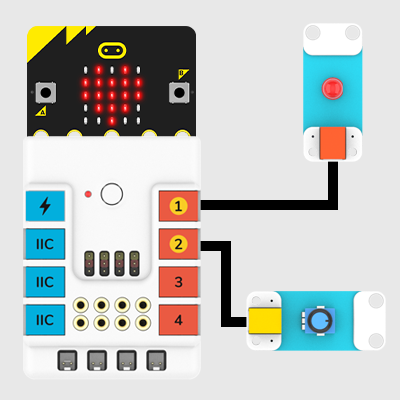

  • Connect the Red LED to J1 port and the potentiaometer to J2 port in the Nezha expansion board as the picture shows.

../_images/05009_03.png

10.6. MakeCode Programming#


10.6.1. Step 1#

Click “Advanced” in the MakeCode drawer to see more choices.

../_images/05001_04.png

We need to add a package for programming, . Click “Extensions” in the bottom of the drawer and search with “PlanetX” in the dialogue box to download it.

../_images/05001_05.png

Note: If you met a tip indicating that the codebase will be deleted due to incompatibility, you may continue as the tips say or build a new project in the menu.

10.6.2. Step 2#

10.6.3. Code as below:#

../_images/05009_06.png

10.6.5. Result#

  • The brightness is adjusted by the potentiometer.

10.7. Python Programming#


10.7.1. Step 1#

Download the package and unzip it: PlanetX_MicroPython

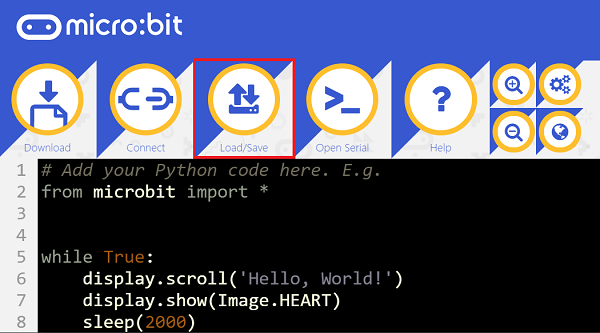

Go to Python editor

../_images/05001_072.png

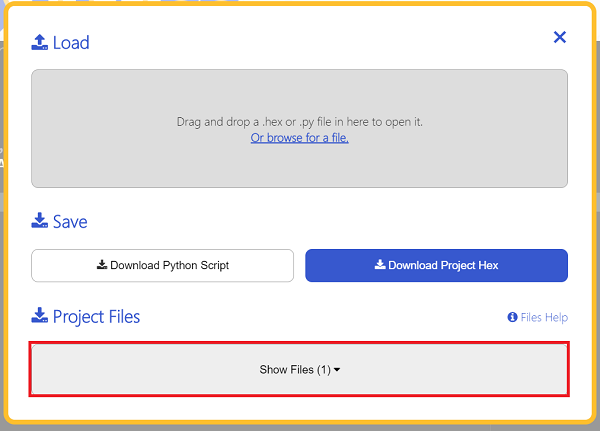

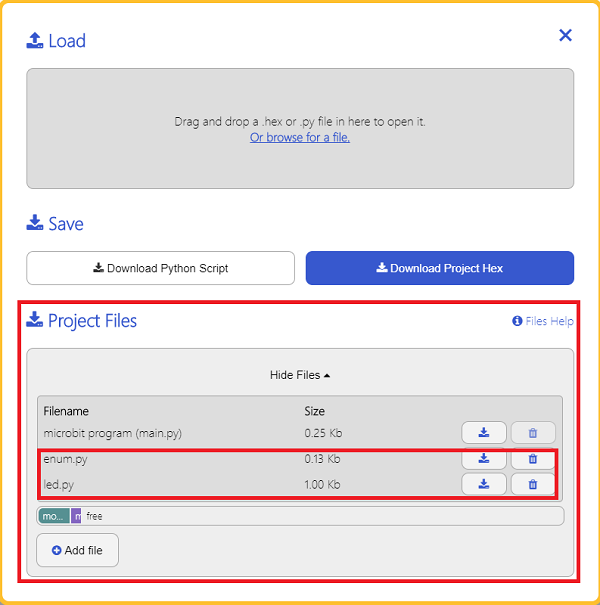

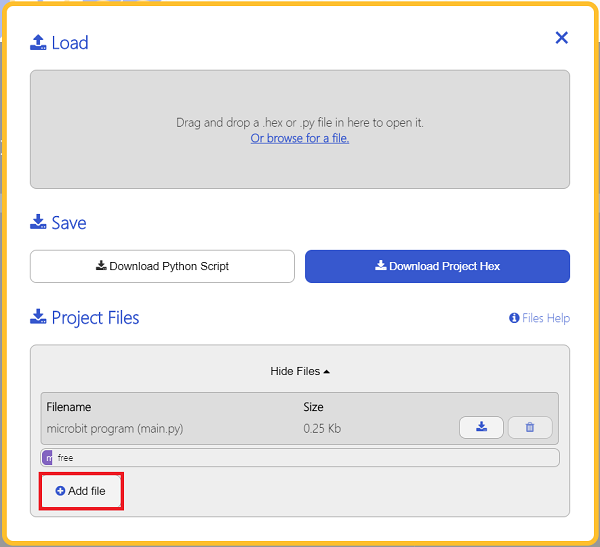

We need to add enum.py and led.py for programming. Click “Load/Save” and then click “Show Files (1)” to see more choices, click “Add file” to add enum.py and led.py from the unzipped package of PlanetX_MicroPython.

../_images/05001_081.png ../_images/05001_091.png ../_images/05009_10.png

10.7.2. Step 2#

10.7.3. Reference#

from microbit import *
from enum import *
from led import *
led = LED(J1)

while True:
    led.set_led(1,100)
    sleep(1000)
    led.set_led(1,50)
    sleep(1000)
    led.set_led(0,50)
    sleep(1000)

10.7.4. Result#

  • LED lights on in 100% brightness for one second and 50% brightness for another sencond and lights off for one second after powering on and it continues working in this way.
