17. Rainbow LED Strip and GVS Connector -10 LEDs(EF04098)#

17.1. Introduction#

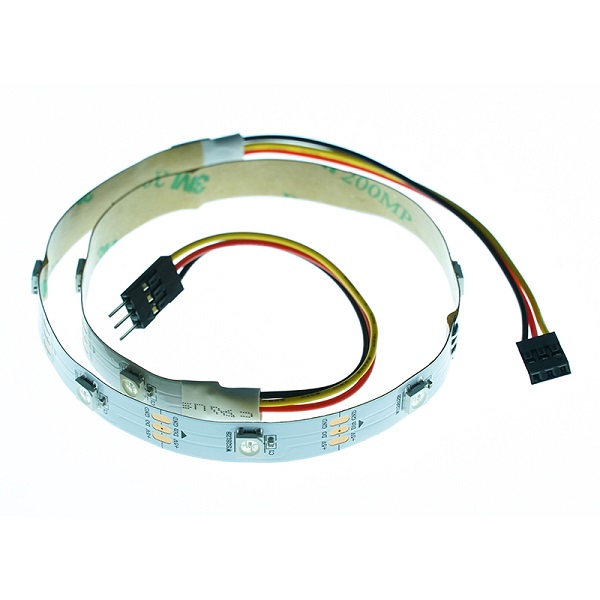

This is a colorful strip based on WS2812B beads, it can display the color of RGB and support multiple cascade at the same time.

../../_images/04098_0.jpg

17.2. Products Link#

ELECFREAKS Rainbow LED Strip And GVS Conector -10 LEDs

17.3. Characteristics#

Standard 3-pin GVS ports is easy to plug. Both ends are equipped with a connector and it supports multiple cascade. It can drive the micro:bit in 3.3V.

17.4. Specifications#

SKU：EF04098 Working Voltage: DC 3.0V Power Supply: 3v-5v Connector Type: Analog Number of beads: 10 pcs Pins Definition: 1-Signal 2-VCC 3-GND Response: Quick to response and high sensitivity Circuit：Simple drive circuit Stability：Stable and durable

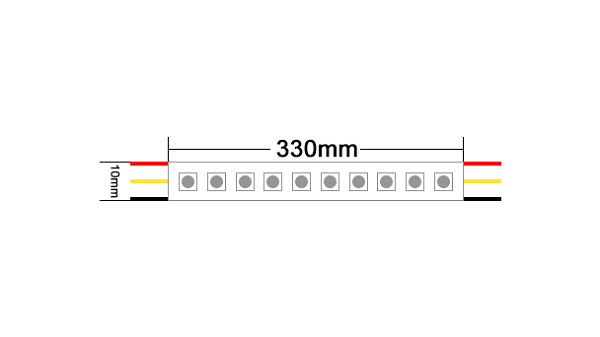

17.5. Outlook and Dimensions#

../../_images/04098_2.png

17.6. Quick to Start#

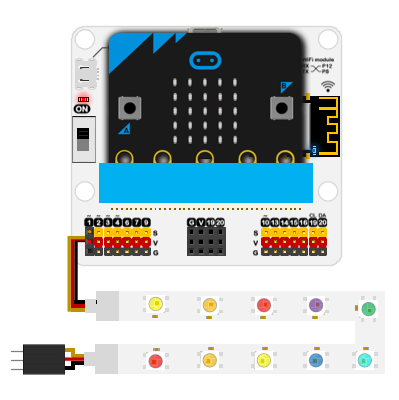

Connection Diagram#

Connect to the P1 port of the extension board.

../../_images/04098_5.png

Add Package#

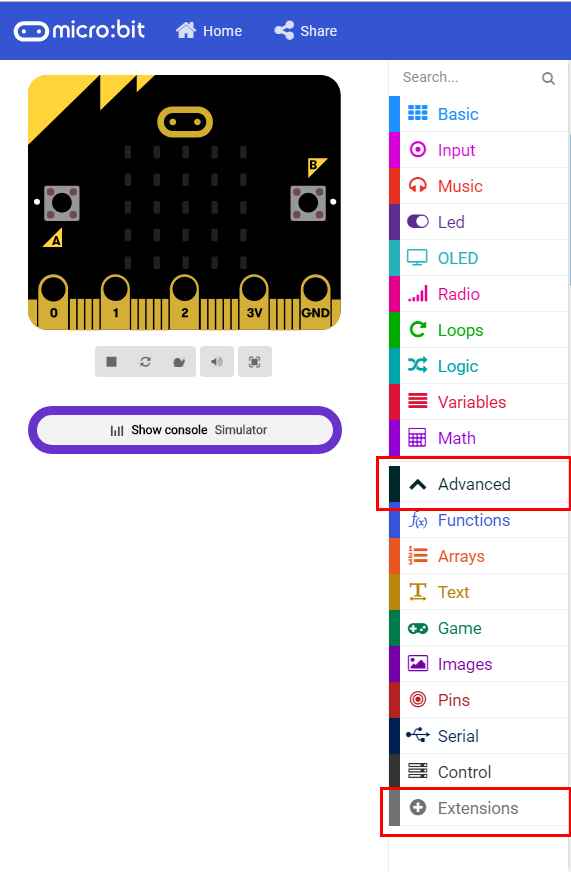

Click “Advanced” in MakeCode to check more choices.

../../_images/smtcNoB1.png

Click “Extensions”, and search “neopixel” in the dialogue box to download the codebase of LED beads.

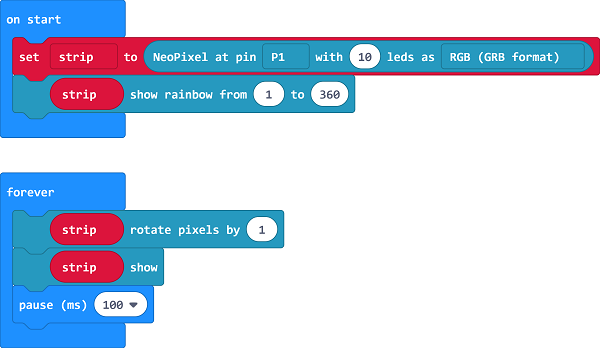

Programme as the Picture Shows#

../../_images/04098_3.png

Reference#

Links: https://makecode.microbit.org/_bfECLKegkYbR

You can also download it directly:

Results#

The LED strips light in a way of flowing-water.
