6. Case 04: Farmlands Protection Device#

6.1. Introduction#


  • In order to protect the farmlands from people to get in, we can set a farmland protection device.

6.2. Function#


  • Detect if there is any people approaching with the PIR sensor and Sonar:bit, if yes, program to remind people of not coming by lighting on the rainbow LED.

6.4. Picture#


../../_images/microbit-Smart-Agriculture-Kit-case-01-02.png

6.5. Hardware Connection#


Connect the Sonar:bit to P1, the PIR sensor to P2 and the rainbow LED to P9 on IoT:bit.

../../_images/microbit-Smart-Agriculture-Kit-case-04-03.png

6.6. Software Programming#


Click “Advanced” in the MakeCode to see more choices.

../../_images/microbit-Smart-Agriculture-Kit-case-01-04.png

For programming, we need to add a package: click “Extensions” at the bottom of the MakeCode drawer and search with “iot-environment-kit” in the dialogue box to download it.

../../_images/microbit-Smart-Agriculture-Kit-case-01-05.png

Notice: If you met a tip indicating that some codebases would be deleted due to incompatibility, you may continue as the tips say or create a new project in the menu.

6.7. Program#


Drag the on start block from the drawer, initialize the strip connecting to P9 with 1 led.

../../_images/microbit-Smart-Agriculture-Kit-case-04-07.png

Set to connect the sonar:bit to P1 with unit “cm” and the PIR sensor to P2, save the returned values as the variable “ultrasonic_distance” and the variable “IR” accordingly.

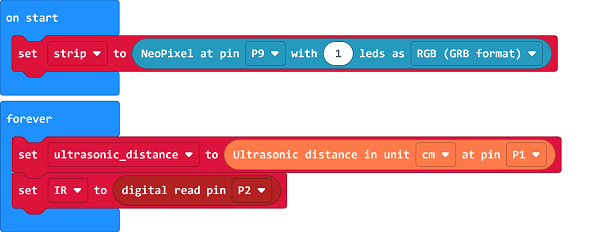

../../_images/microbit-Smart-Agriculture-Kit-case-04-08.png

Judge if the variable “ultrasonic_distance” is in the threshold, if yes, judge if the variable “IR” is 1, if yes, set the strip to show red and the buzzer to alarm; or turn the lights off.

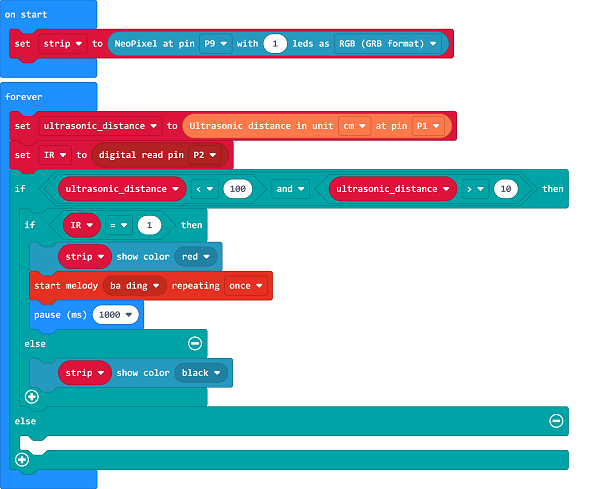

../../_images/microbit-Smart-Agriculture-Kit-case-04-09.png

If the variable “ultrasonic_distance” is not in the threshold, program to turn off it light.

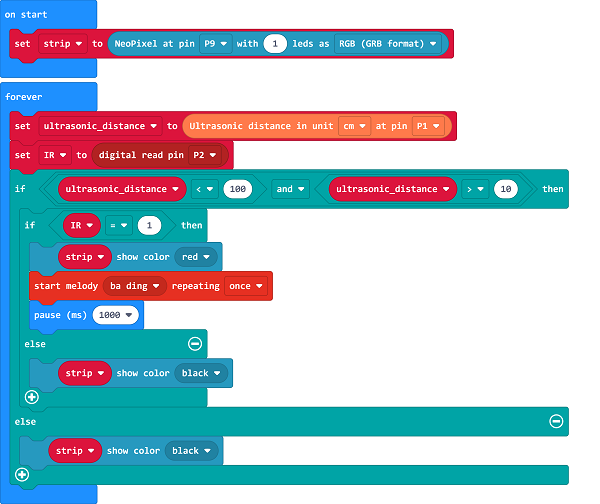

../../_images/microbit-Smart-Agriculture-Kit-case-04-10.png

Link: https://makecode.microbit.org/_gDhV67AceFJw

6.8. Result#


  • If the device detects any people coming to the farmlands, the red light turns on and the buzzer alarms.
