1.8. Case 07: AI Lens Line Follower Car#

1.8.1. Purpose#

Build a line following car with the bricks and the AI lens.

../../_images/05035_01.png

1.8.2. Products Link#

ELECFREAKS High-Speed Building Blocks Motor

Materials Required and Connection Diagram#

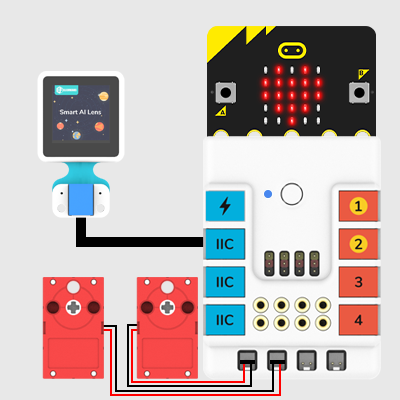

Connect the AI Lens to the IIC port and the two motors on M1,M2 ports on the Nezha expansion board as the picture shows.

../../_images/05035_07_07.png

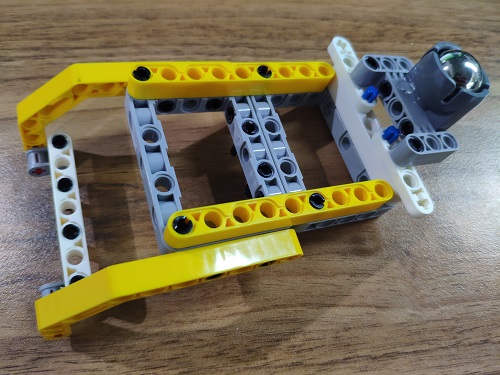

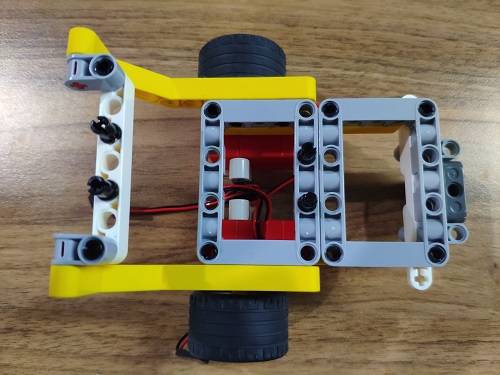

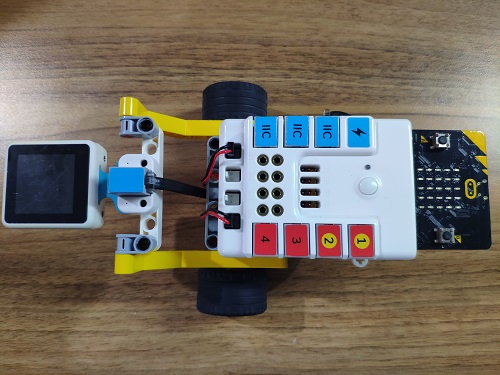

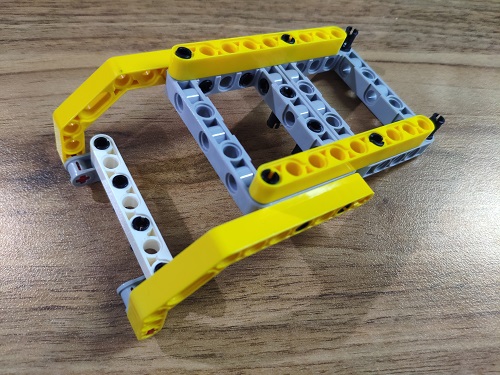

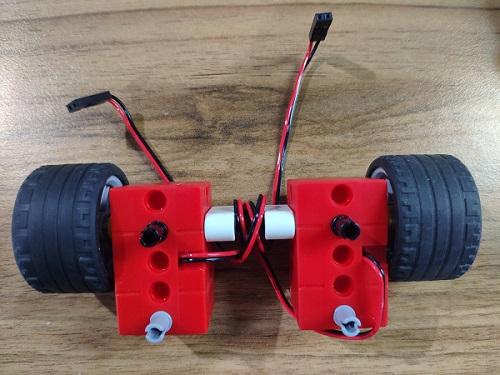

Build a car with the bricks below.

../../_images/05035_07_01.png

../../_images/05035_07_02.png

../../_images/05035_07_03.png

../../_images/05035_07_04.png

../../_images/05035_07_05.png

1.8.3. MakeCode Programming#

Step 1#

Click “Advanced” in the MakeCode drawer to see more choices.

../../_images/05001_041.png

We need to add a package for programming. Click “Extensions” in the bottom of the drawer and search with “PlanetX” in the dialogue box to download it.

../../_images/05001_051.png

Note: If you met a tip indicating that the codebase will be deleted due to incompatibility, you may continue as the tips say or build a new project in the menu.

Step 2#

Code as below:#

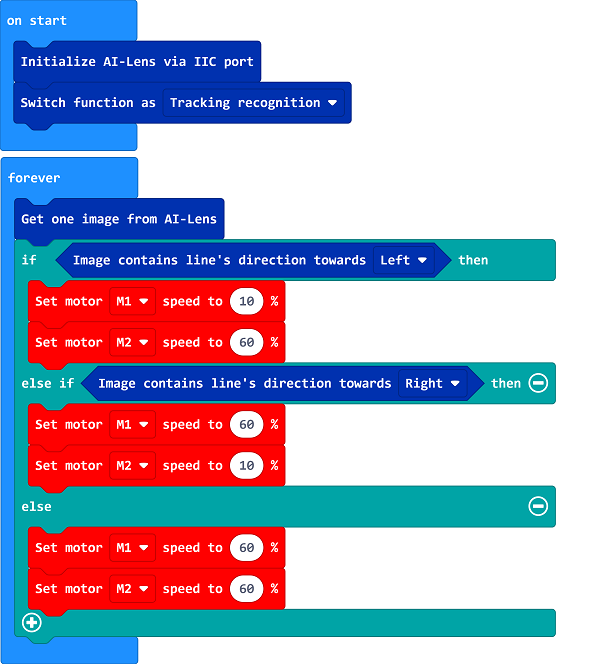

../../_images/05035_07_06.png

Link#

Link：https://makecode.microbit.org/_D3objUWFo5YA

You may also download it directly below:

Result#

The car moves along with the line with the guidance of the AI lens.
