10. Octopus 5mm LED Brick OBLED - Blue(EF04036)#

10.1. Introduction#


  • Octopus 5mm LED light Brick can be used in the interaction with the light works.

../../_images/Raj46TF.jpg

10.2. Characteristics#


  • The 3-pins ports is easy to plug and play.

10.3. Specifications#


Item Parameter
Power Dissipation ULP
Working Temperature -20-70℃
Working Voltage 3.3-5V

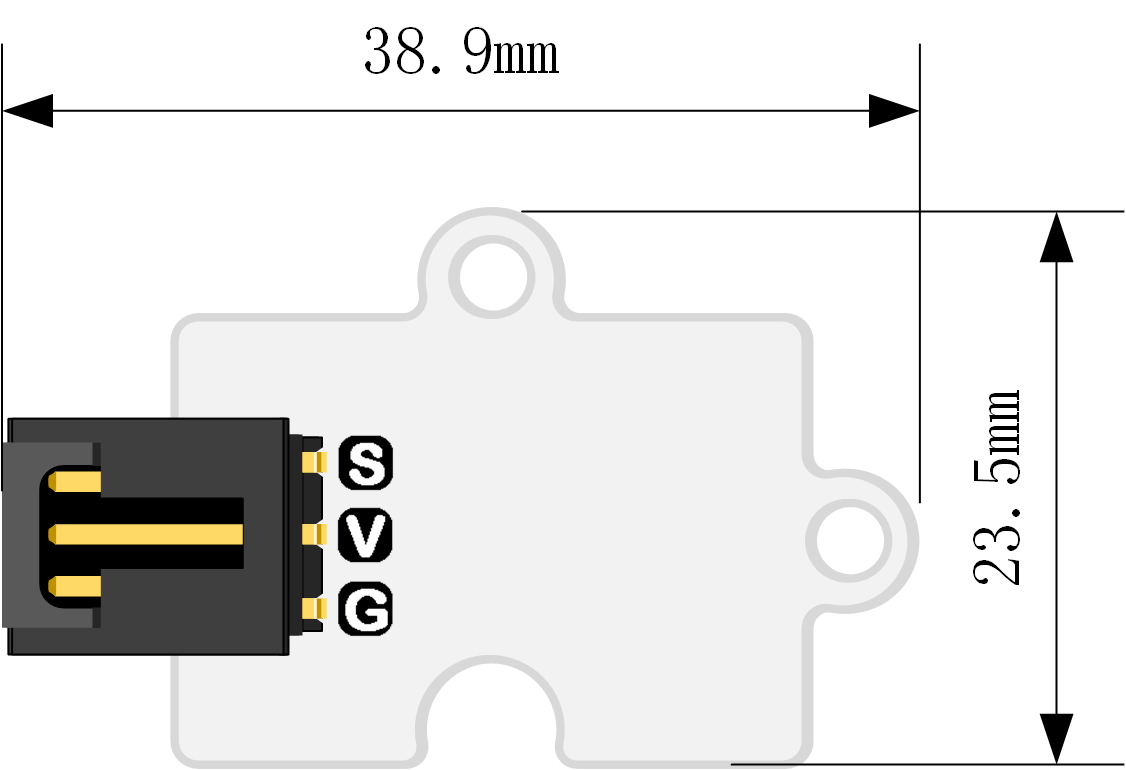

10.4. Outlook and Dimensions#


../../_images/oFiMInJ.png

10.5. Quick to Start#

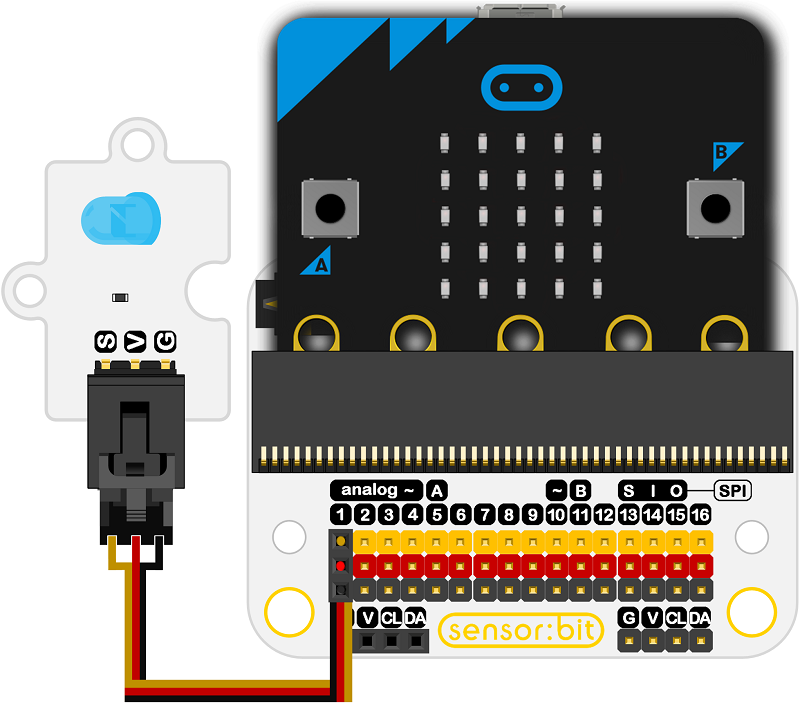

Materials used and connection diagram#

  • Connect to the P1 port as the picture shows

    Take sensor:bit for example

../../_images/gPeDZkY.png

Add Package#

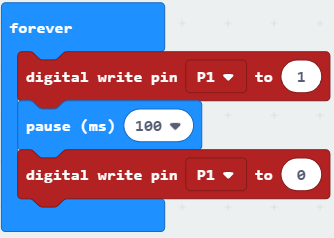

Program as the picture shows#

  • Digital write pin P1 to 1 and 0 repeatedly.

../../_images/vL9kUwl.png

Reference#

Links: https://makecode.microbit.org/_KtyY18CKtAb5

You can also download the links below:

Result#

  • The LED lights on each second while the power is on.

10.6. Relevant Cases#


10.7. Technique Files#
