11. Octopus 5mm LED Brick - Green(EF04062)#

11.1. Introduction#

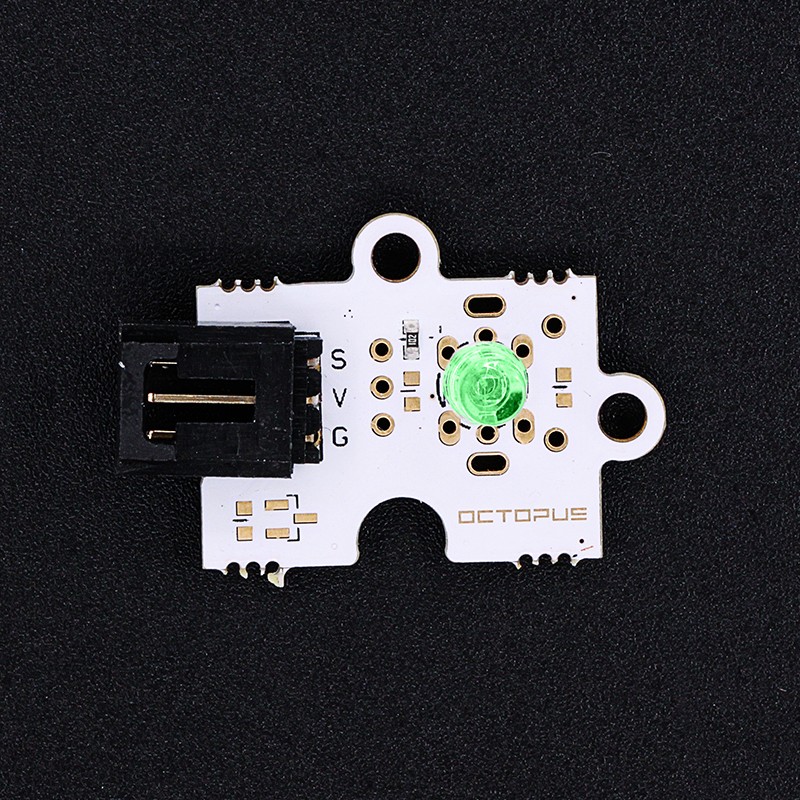

Octopus 5mmLED light Brick can be used in the interaction with the light works with micro:bit/Arduino.

../../_images/SNPuLwe.jpg

11.2. Characteristics#


  • The 3-pins ports is easy to plug and play.

11.3. Specifications#


Item Parameter
SKU 04062
Working Voltage 3.3V-5V
Weight 5g

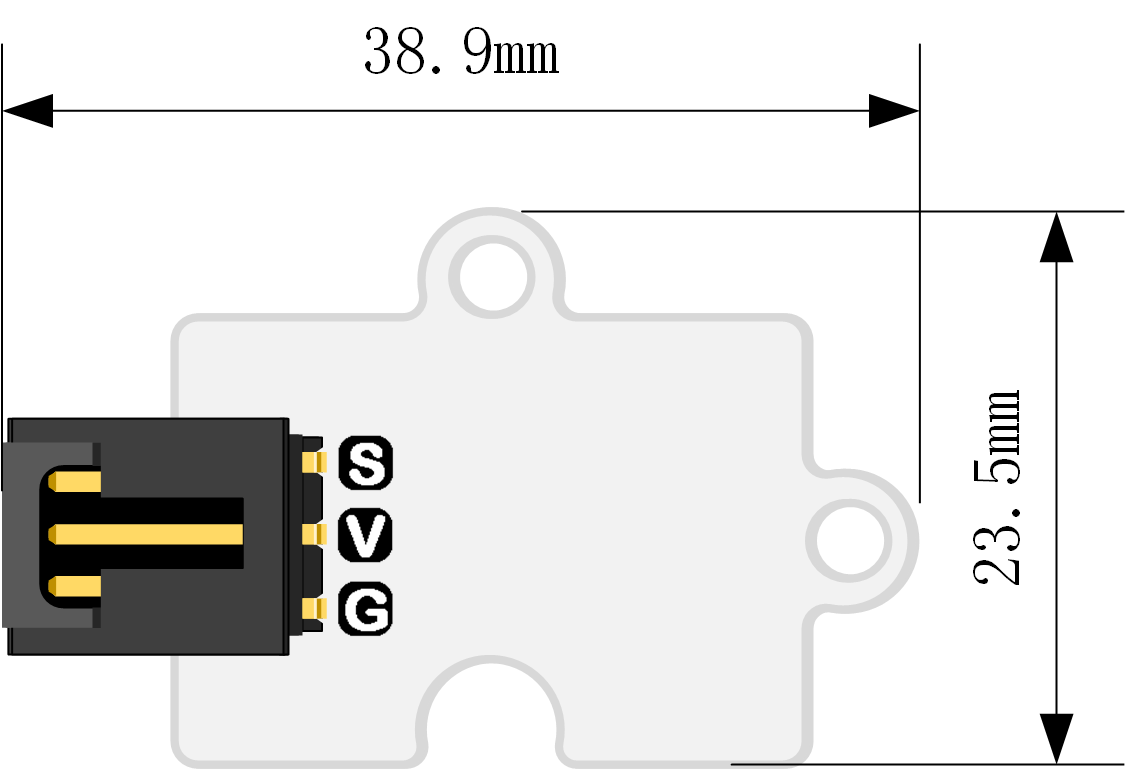

11.4. Outlook and Dimensions#


../../_images/S2mhxLt.png

11.5. Quick to Start#

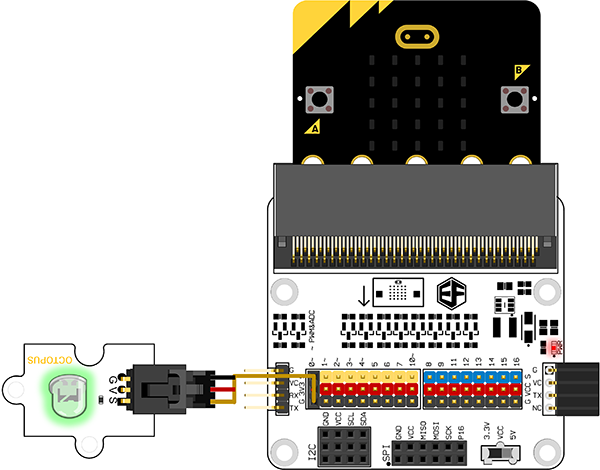

Materials used and connection diagram#

  • Connect to the P0 port

    Take octupus:bit for example

../../_images/KsTl0U6.png

Add Package#

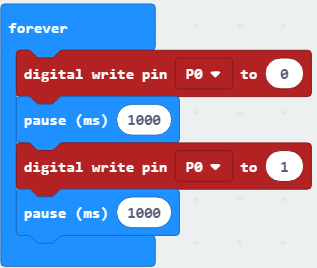

Program as the picture shows#

  • Digital write pin P0 to 1 and 0 one second later.

../../_images/AAzv9pn.png

Reference#

Links:https://makecode.microbit.org/_J82V5PgzghKR

You can also download the links below:

Result#

  • LED flashes each second.

11.6. Relevant Cases#


11.7. Technique Files#
