40. Case 36: Color Recognition Password Door#

40.1. Introduction#

This is a unique code door because it uses colors as the password. The code door will only open when the color cards are placed in the correct order.

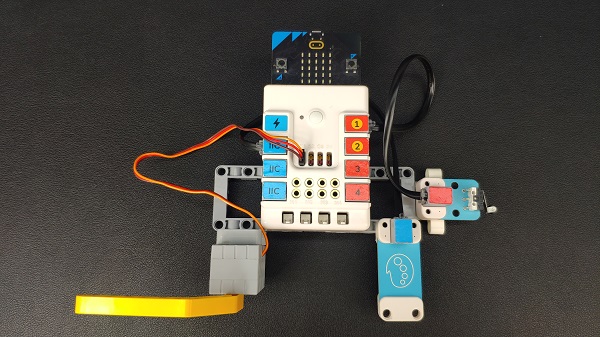

../../_images/case_36_01.png

40.2. Quick Start#

Materials Required#

Nezha expansion board × 1

micro:bit V2 × 1

color sensor × 1

Servo × 1

Crash sensor × 1

Bricks × n

Tips: You may need to purchase Nezha Inventor’s Kit and Purchase Interactive coding accessories pack here. if you want all the above components.

Connection Diagram#

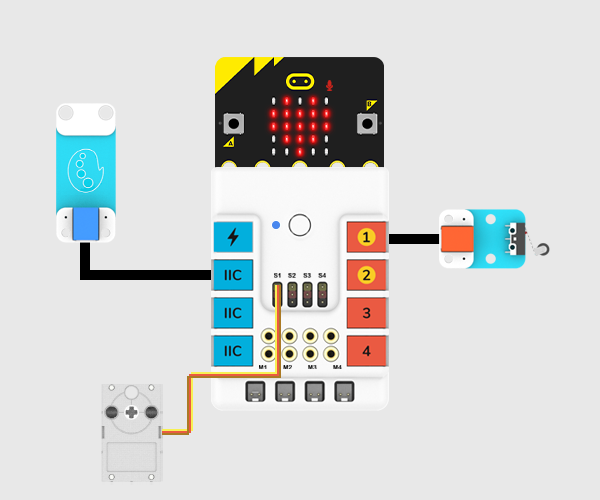

Inset the micro:bit, connect the color sensor to IIC port, the 360 degrees servo to S1 and the crash sensor to J1 port on Nezha expansion board.

../../_images/case_36_03.png

Assembly Video#

Video link: https://youtu.be/WiSpnc5fPbA

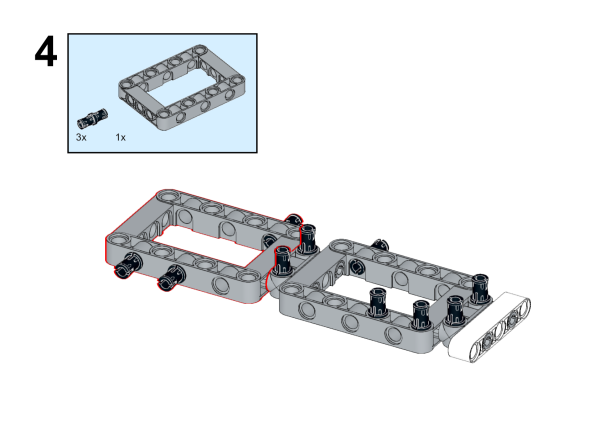

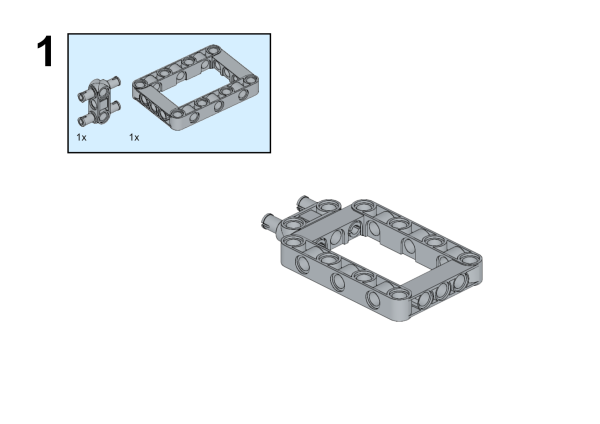

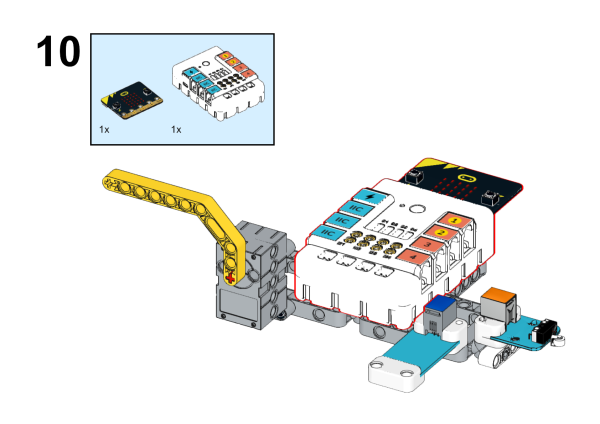

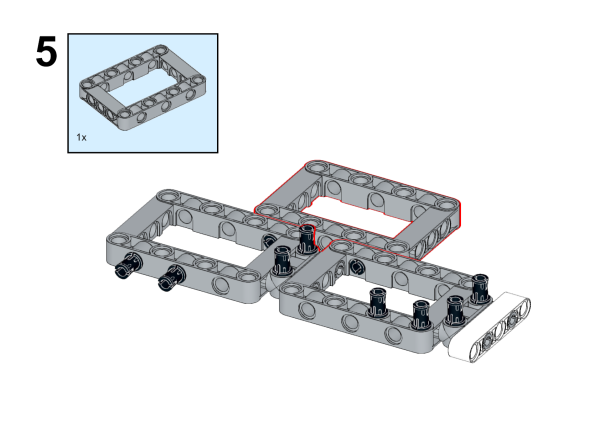

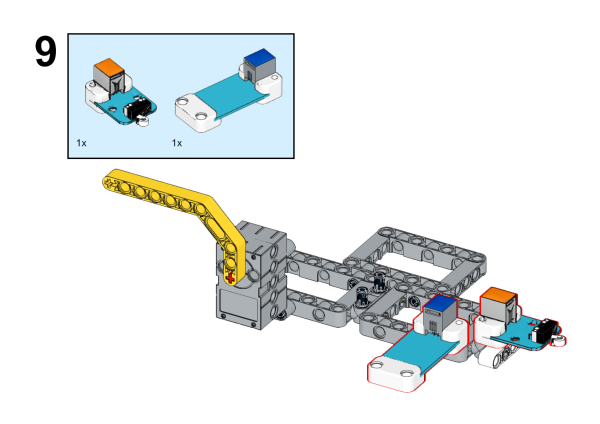

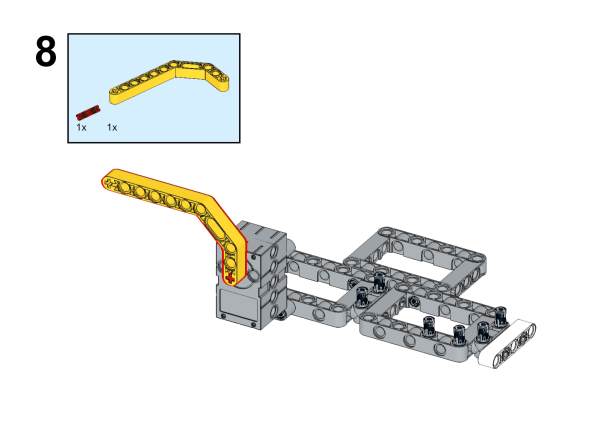

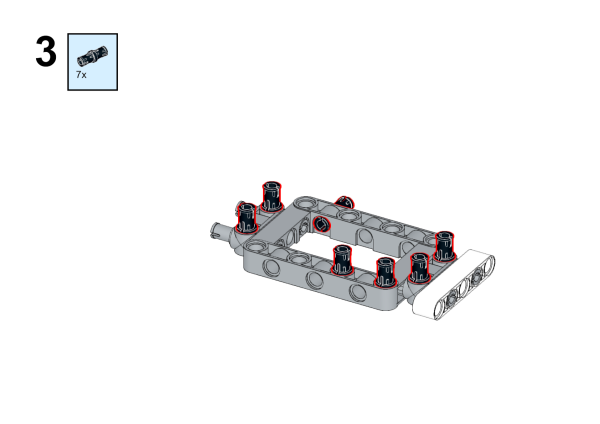

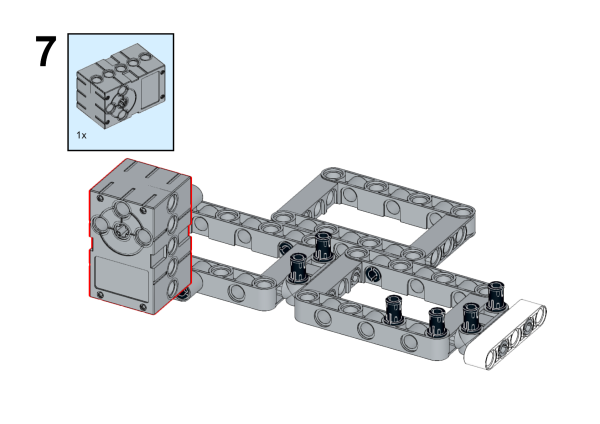

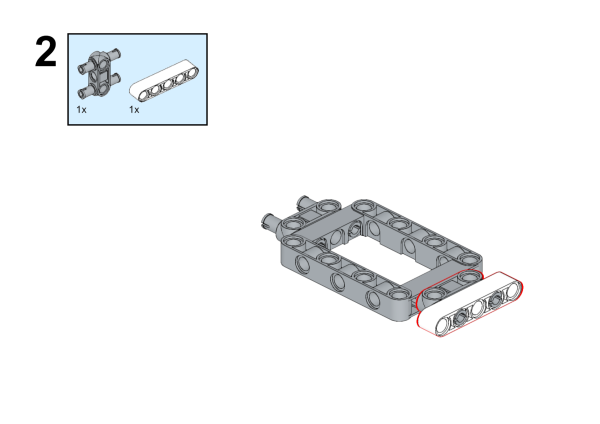

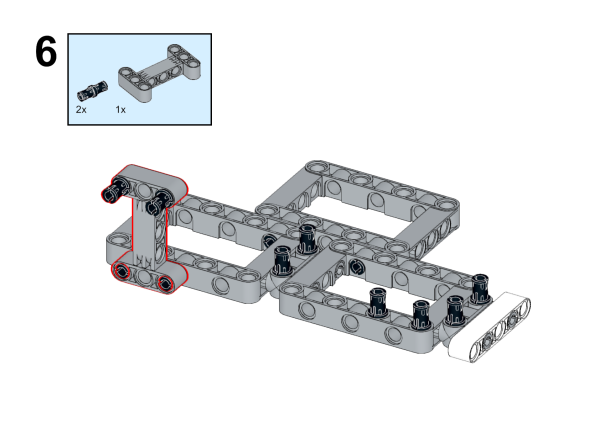

Assembly Steps#

../../_images/case_step_36_01.png

../../_images/case_step_36_02.png

../../_images/case_step_36_03.png

../../_images/case_step_36_04.png

../../_images/case_step_36_05.png

../../_images/case_step_36_06.png

../../_images/case_step_36_07.png

../../_images/case_step_36_08.png

../../_images/case_step_36_09.png

../../_images/case_step_36_10.png

../../_images/case_step_36_11.png

40.3. MakeCode Programming#

Step 1#

Click “Advanced” in the MakeCode drawer to see more choices.

../../_images/case_01_10.png

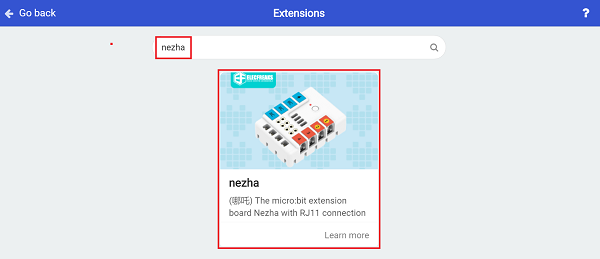

We need to add a package for programming. Click “Extensions” in the bottom of the drawer and search with “nezha” to download it.

../../_images/case_03_09.png

Note: If you met a tip indicating the codebase might be deleted due to incompatibility, you may continue as the tips say or create a new project in the menu.

Step 2#

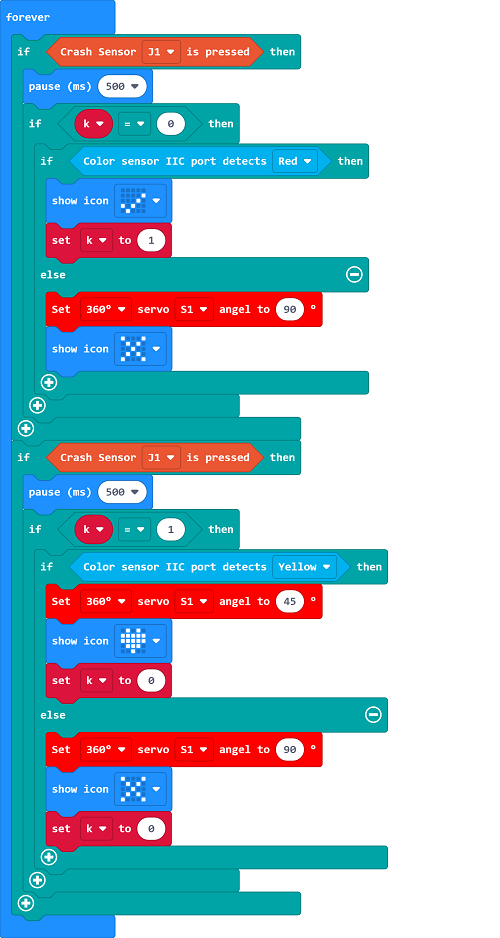

Programme as the pictures indicate#

../../_images/case_36_10.png

Reference#

Link: https://makecode.microbit.org/_3xJgWP2ig48r

You may download it directly below:

Result#

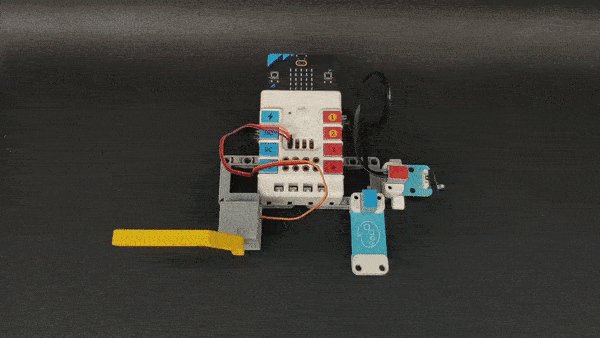

Sending the passwords via the colors, press the crash sensor to confirm after you choose the colors ready, the door would open if the two passwords are correct or the micro:bit displays “x” and the program reruns.

../../_images/case-gif-36.gif
