1. Introduction to Pico:ed Smart Cutebot kit#

1.1. Introduction#

ELECFREAKS Pico:ed Smart Cutebot is a rear-drive smart car driven by dual high speed motors. There are many on-board equipments on the Pico:ed Smart Cutebot including ultrasonic sensor, two RGB LED headlights, clearance lamps on thebo ttom, two line-tracking probes, an active buzzer as the horn and so on! Let’s drive your first smart carELECFREAKS Pico:ed Smart Cutebot is a rear-drive smart car driven by dual high speed motors.

  • High-speed motors, the dual high-speed motors rear drive give powerful power.

  • Compact structure, the rounded shape and anti-collision edges give a comfortable feel.

  • Easy to assemble, only need to install battery pack and ultrasonic sound sensor which are convenient and quick to operate.

1.2. Technical parameters#

Technical category Parameters
Support Voltage 3.5V — 5V
Dimensions 85.68mm X 85.34mm X 38.10mm
IR Remote Control To receive the signals of IR, it connects to P16
RGB Headlight 2 x RGB lights
Rainbow LED Connect to P15
Interfaces Servo interface(S1,S2), IIC interface(P19,P20), ultrasonic interface, P1 and P2 (lead out by GVS terminal)
Motor type GA12-N20 miniature DC geared motor
Ultrasonic Sound Sensor HC-SR04(2-400cm non-contact distance sensing, accuracy 3mm)

1.3. Functional Modules Description#

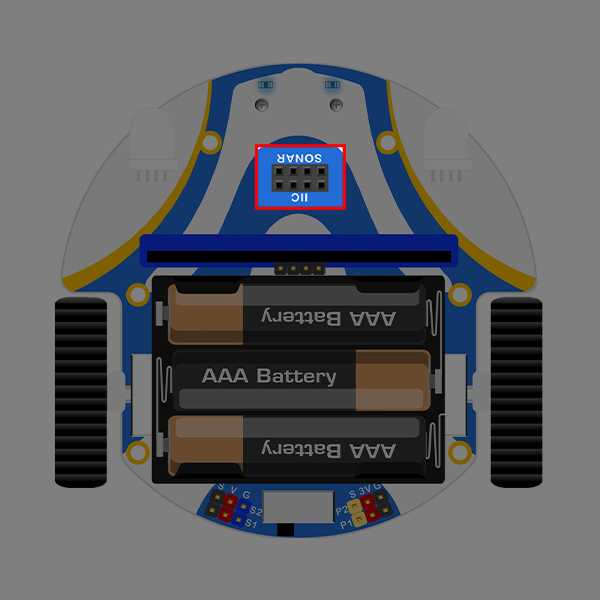

The front of the car is equipped with ultrasonic interface and IIC interface

../../_images/pico-cutebot-01.png

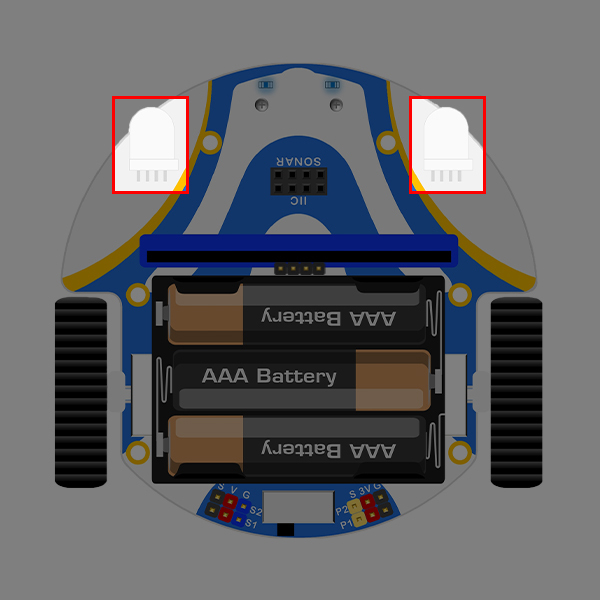

The front left and right sides are equipped with two RGB full color LED lights, they are controlled by the expansion board.

../../_images/pico-cutebot-02.png

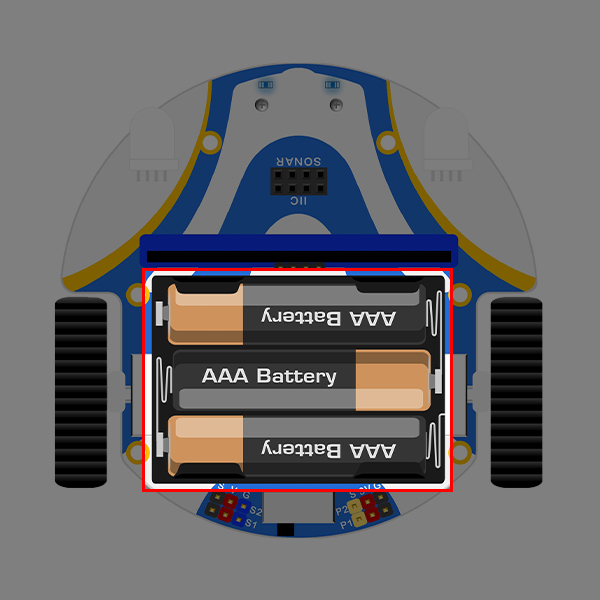

Three AAA batteries holders are installed right above to drive the whole cart.

../../_images/pico-cutebot-03.png

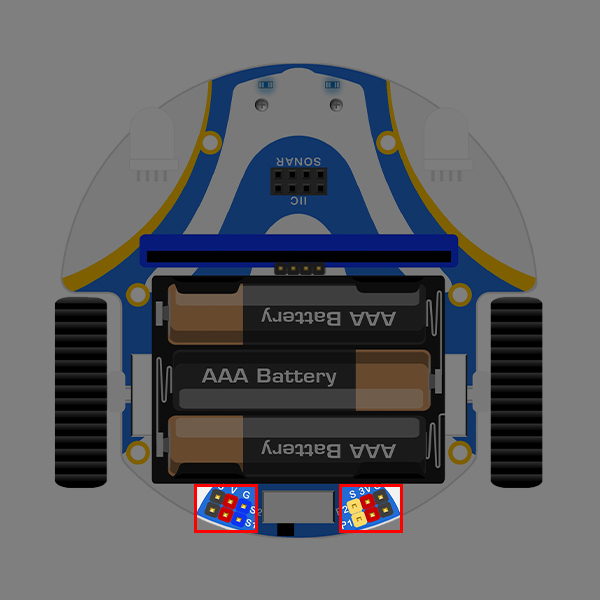

The battery pack expansion board is extended with both S1 and S2 servo interfaces and P1 and P2 IO interfaces.

../../_images/pico-cutebot-04.png

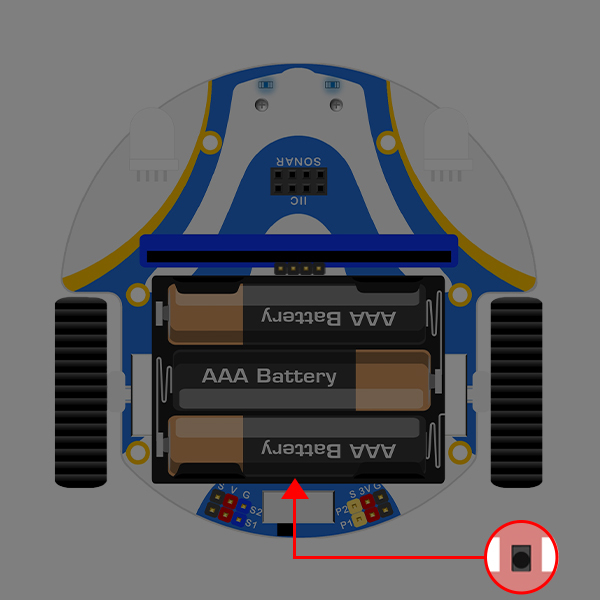

The cart has an infrared receiver at the end (under the battery box) which is connected to the P16 interface.

../../_images/pico-cutebot-05.png

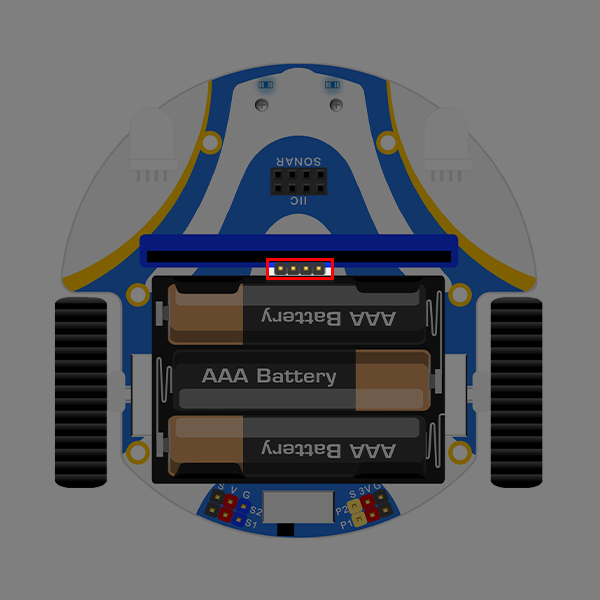

The cart is equipped with an IIC interface for AI Lens connection.

../../_images/pico-cutebot-06.png

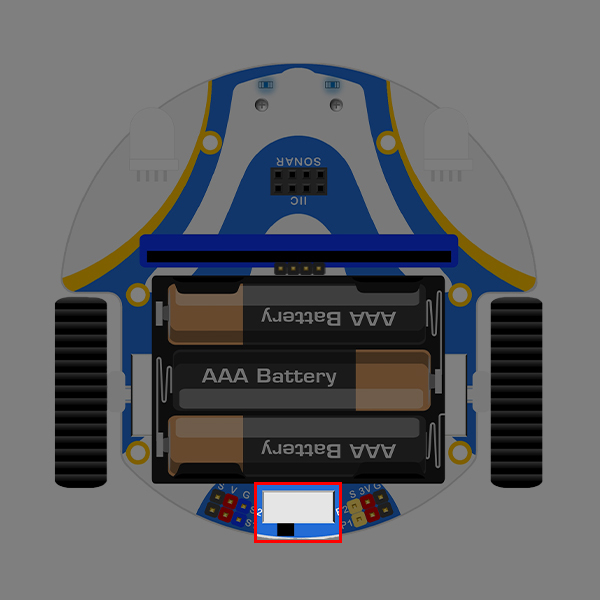

Next to the infrared receiver at the rear is the car’s main power switch, with an LED to indicate the switch status.

../../_images/pico-cutebot-07.png

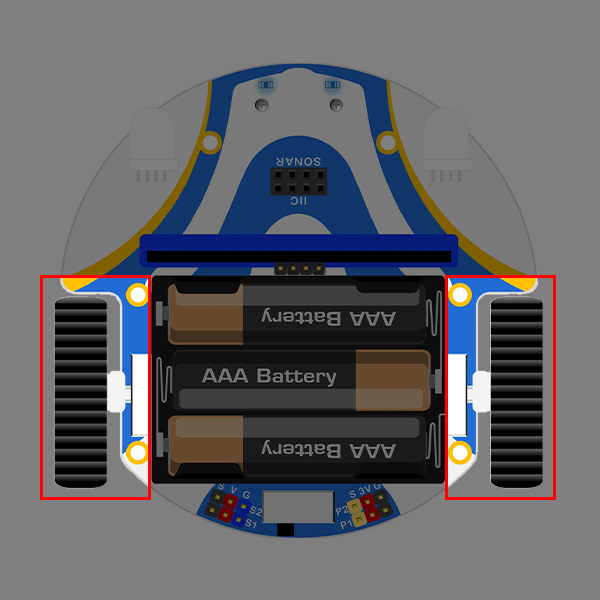

The left and right sides are two miniature high-speed DC gear motor-driven wheels, you enjoy the speed of flying!

../../_images/pico-cutebot-08.png

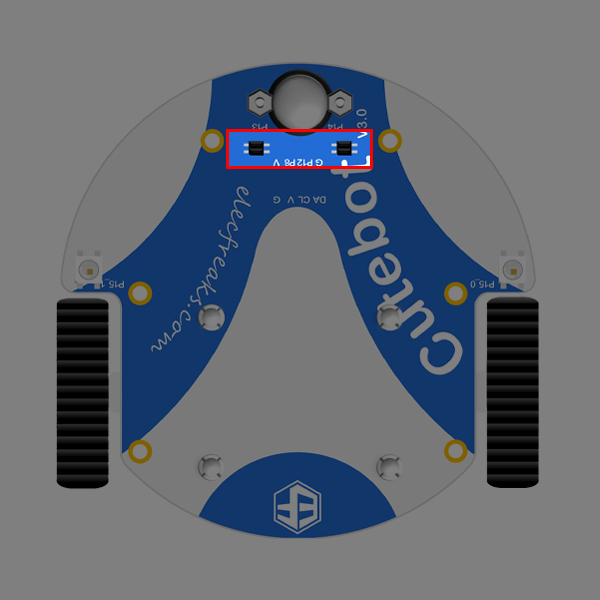

There are two line trscking probes on the bottom of the cart for detecting black lines and edges, which are connected to P13 and P14 interfaces.

../../_images/pico-cutebot-09.png

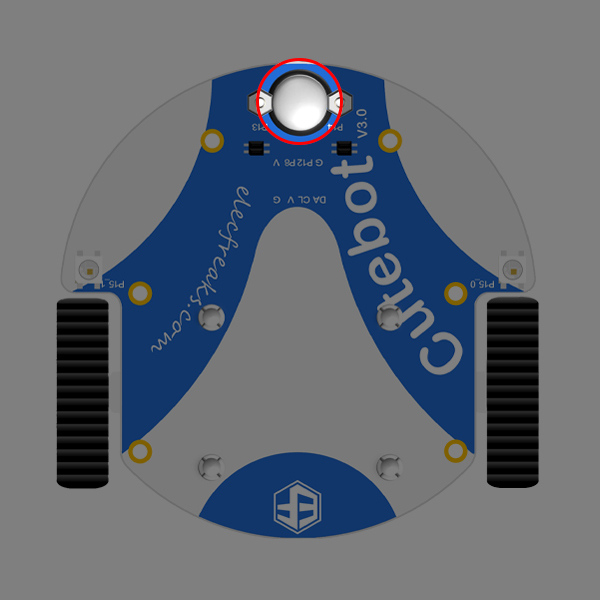

A metal universal wheel is assembled in front of the bottom of the cart, and the cart completes 360 degree omnidirectional driving with the speed difference between the left and right wheels.

../../_images/pico-cutebot-10.png

Two Rainbow LED full-color light beads are installed on both sides on the bottom board, they are connected to the P15 port and can be used as the car’s clearance lamps or other functions.

pico-ed-kit/pico-ed-cutebot-kit/images/pico-

1.4. 1.6. Parts list#

  • 1 x Cutebot car

  • 1 x Battery box

  • 1 x HC-SR04 ultrasonic sound sensor

  • 1 x Line-following map

  • 1 x Manual book
