3. Octopus Linear Slider Potentiometer Brick(EF04061)#

3.1. Introduction#

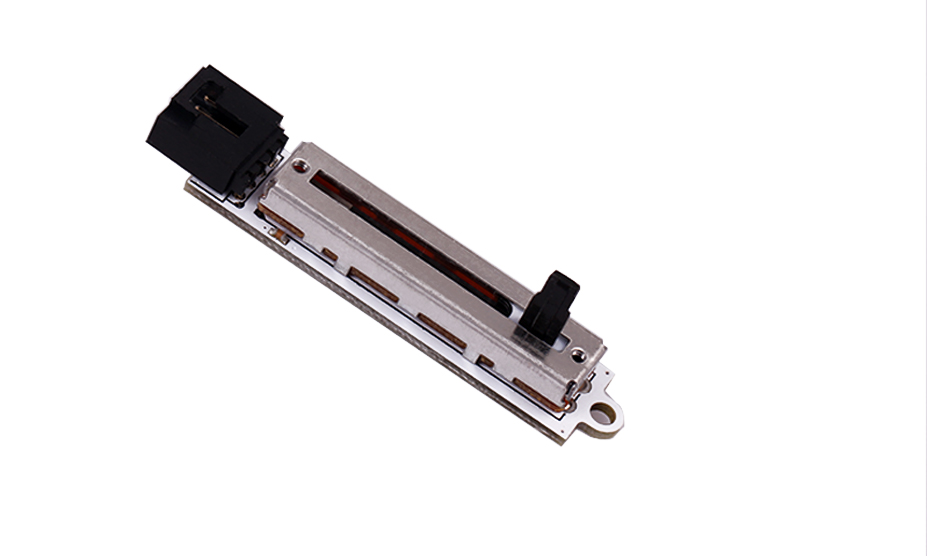

OCTOPUS Potentiometer is a simple linear sliding potentiometer electronic building block module which can be used for resistor divider output, HID control panel, electronic building block kit.

../../_images/zB1We7i.jpg

3.2. Characteristics#


  • The 3-pins ports is easy to plug and play.

3.3. Specifications#


Item Parameter
SKU EF04061
Power Supply 3.3V~5V
Adjustable Length 30mm
Taper Linear resistance
Size 51mm X 13.95mm

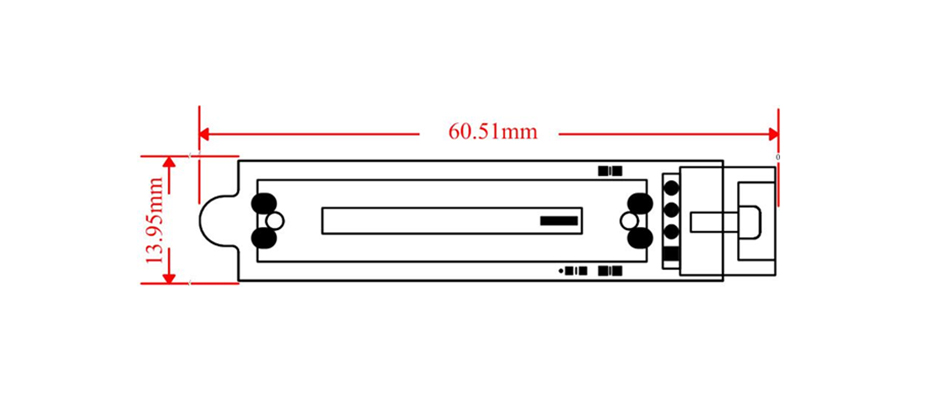

3.4. Outlook and Dimensions#


../../_images/dLwyWxY.jpg

3.5. Quick to Start#

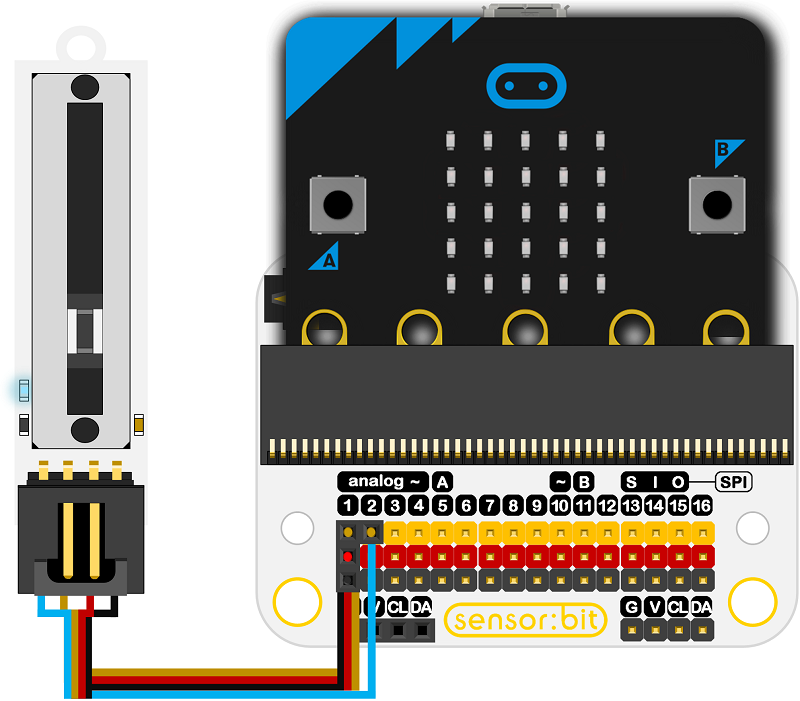

Materials used and connection diagram#

  • Connect out port to the P1 port and the led port to P2 port as the picture shows

    Take sensor:bit for example

../../_images/ikkyw8U.png

Add Package#

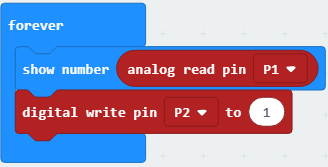

Program as the picture shows#

  1. Show the value read by the sensor on the micro:bit.

  2. The led controlled by Potentiometer lights up by digital writing pin P2 to 1.

../../_images/Q7yiG9T.png

Reference#

Links:https://makecode.microbit.org/_19baPjHKcJMT

You can also download the links below:

Result#

As the resistance is changed by sliding, the resistance of the corresponding band 0-1023 is displayed on the micro:bit, and the LED on the module is illuminated at the same time.
