6. Joystick breakout module BKOUT_MD01(EF03055)#

6.1. Introduction#

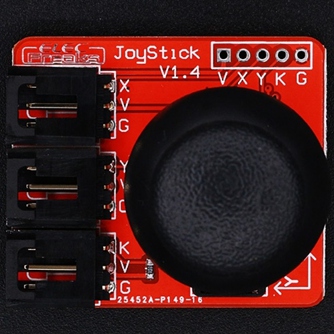

../../_images/03055_1.jpg

6.2. Characteristics#


  • Standard 3-pin GVS port is easy to plug.

  • Support driving micro:bit in 3V.

6.3. Specifications#


Item Parameter
SKU EF03055
Power Supply 3V-5.5V
Connections Type Analog
Pins Definition 1-Signal 2-VCC 3-GND
Response Quick response with high sensitivity
Circuit Simple
Stability Stable and durable

6.4. Outlook and Dimensions#


6.5. Quick to Start#


Materials Required and Connection Diagram#

Add Package#

Click “Advanced” to see more choices in the MakeCode drawer.

microbitOctopus/input/image/smtcNoB.png

Click “Extensions” to search “IoT” in the dialogue box and then download it.

microbitOctopus/input/images/AaZxCEb.jpg

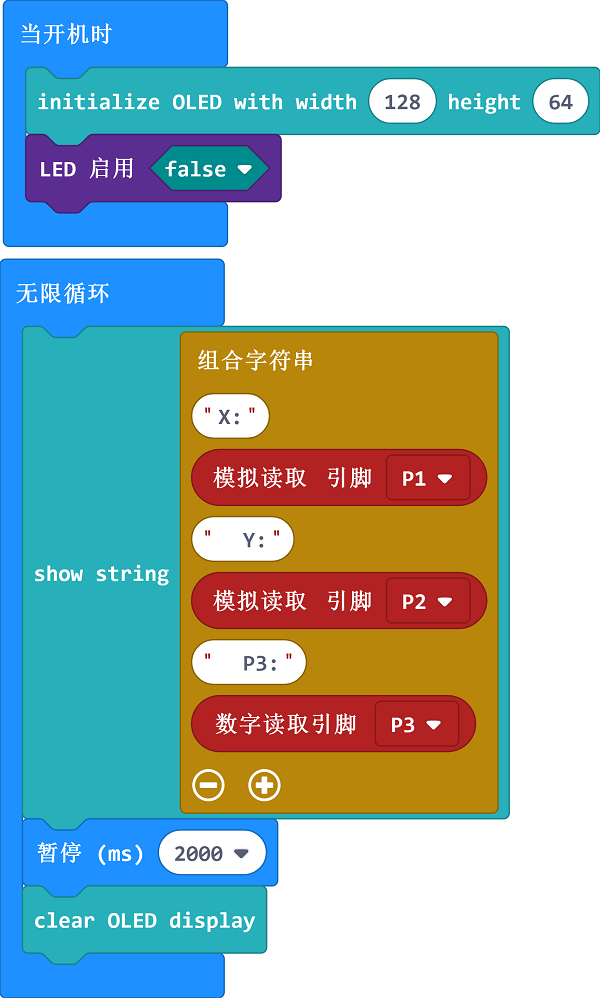

Programme as the picture shows#

  • The current status of the joystick shows on the OLED screen.

../../_images/03055_3.png

Reference#

Link:https://makecode.microbit.org/_gHmP4DJVYXtA You can also download it below directly:

Result#

  • The current status of the joystick shows on the OLED screen.
