2. Octopus Analog Rotation Brick OBARot(EF04041)#

2.1. Introduction#

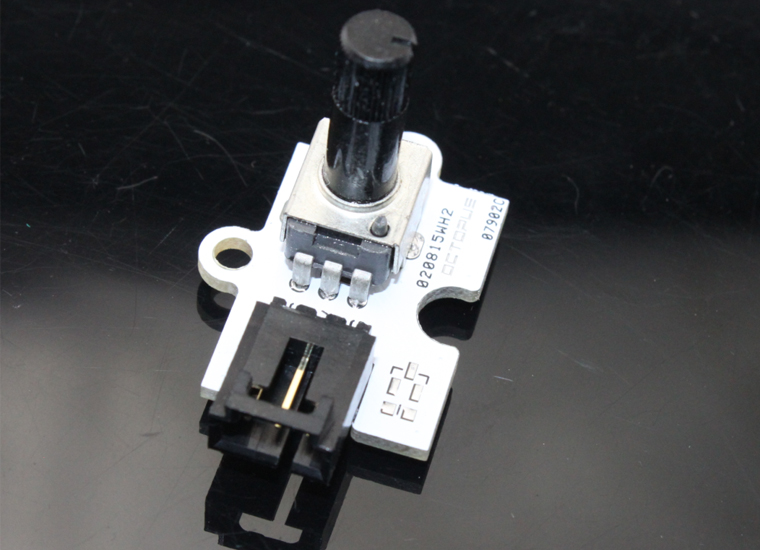

Octopus Analog Rotation Brick is micro:bit compatible and can be rotated up to 300-degree. It is based on the potentiometer.

../../_images/hkPYQxY.jpg

2.2. Characteristics#


  • The 3-pins ports is easy to plug and play.

2.3. Specifications#


Item Parameter
SKU 04041
Power Supply 3.3V~5.5V
Connector Type Analog
Pins Definition S-Sigal V-VCC G-GND
Response Quick response with high sensitivity
Rotate Angel 300 degrees
Size 19x27mm

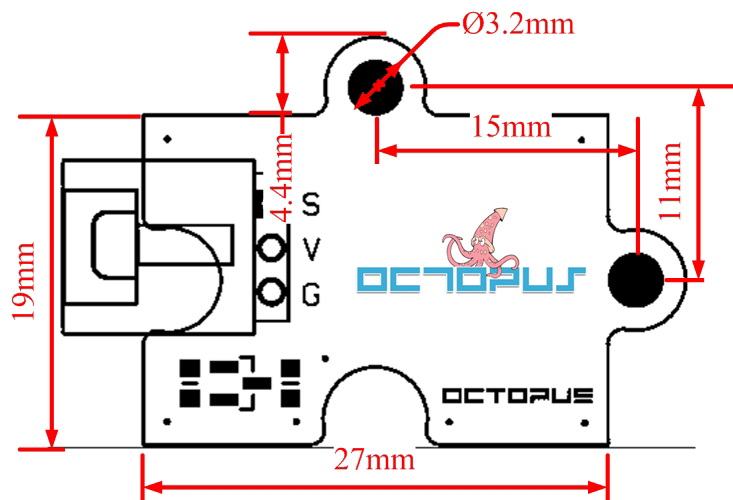

2.4. Outlook and Dimensions#


../../_images/qj7G72X.jpg

2.5. Quick to Start#


Materials used and connection diagram#

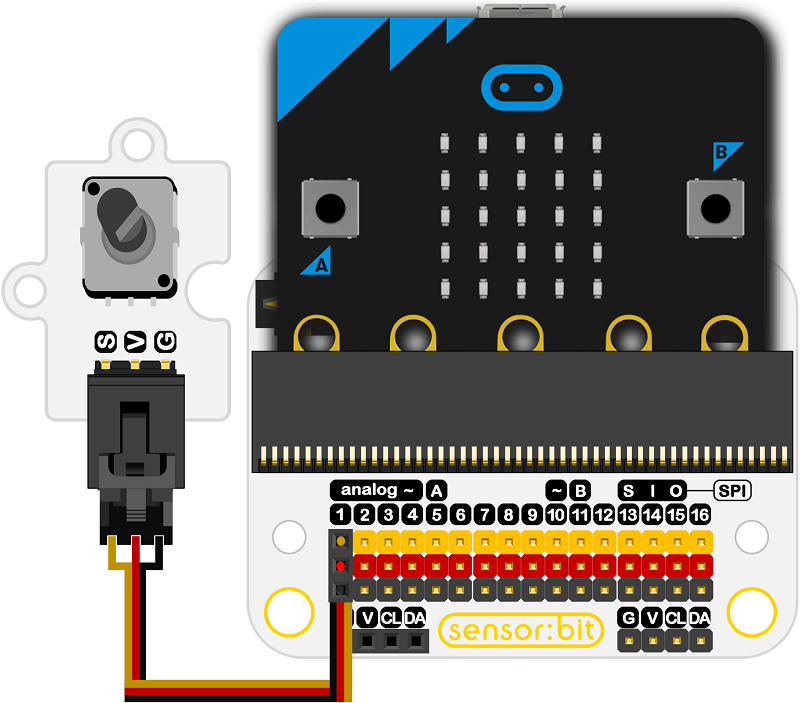

  • Connect to the P1 port as the picture shows

    Take sensor:bit for example

../../_images/3Ltye1u.png

Add Package#

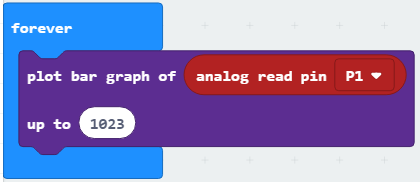

Program as the picture shows#

Use the brick in the led below, then a sector diagram comes out.

../../_images/Afb6xov.png

Reference#

Links:https://makecode.microbit.org/_2hr1UMdcp0uj

You can also download the links below:

Result#

  • Rotate the button on the sensor clock-wisely, then the led on the micro:bit lights on gradually; Oppositely, the led lights off one by one.
