5. Octopus Push Lock E-Switch Brick OBPLock(EF04035)#

5.1. Introduction#

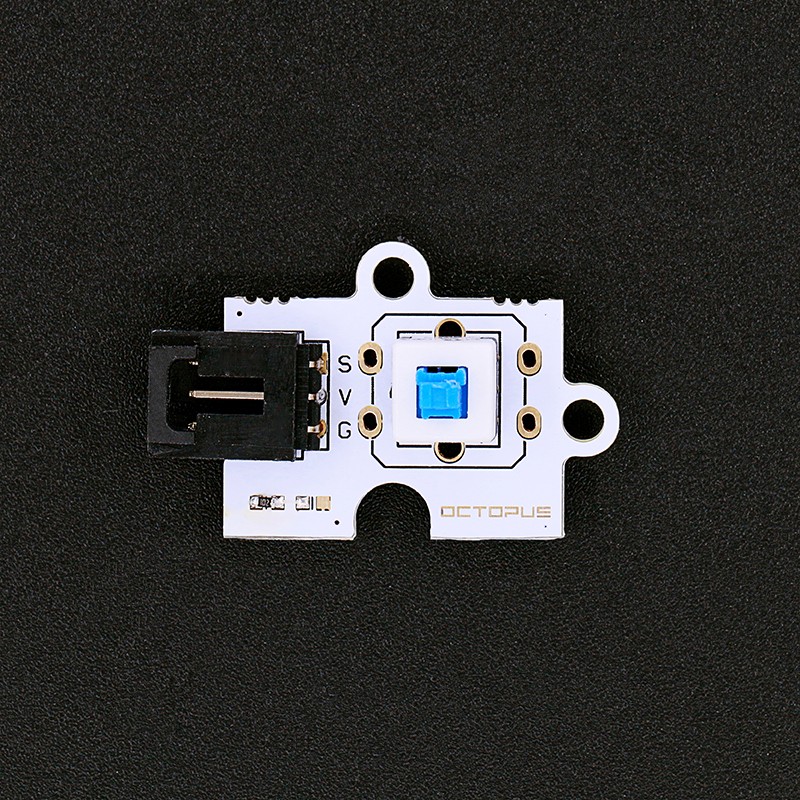

This is Push Lock E-Switch button brick, which detects your press action and it is ideal for beginners to learn.

../../_images/SMeQQyr.jpg

5.2. Characteristics#


  • It is easy to plug and play.

5.3. Specifications#


Item Parameter
SKU EF04035
Power Dissipation ULP
Working Temperature -20-70℃
Working Voltage 3.3-5V

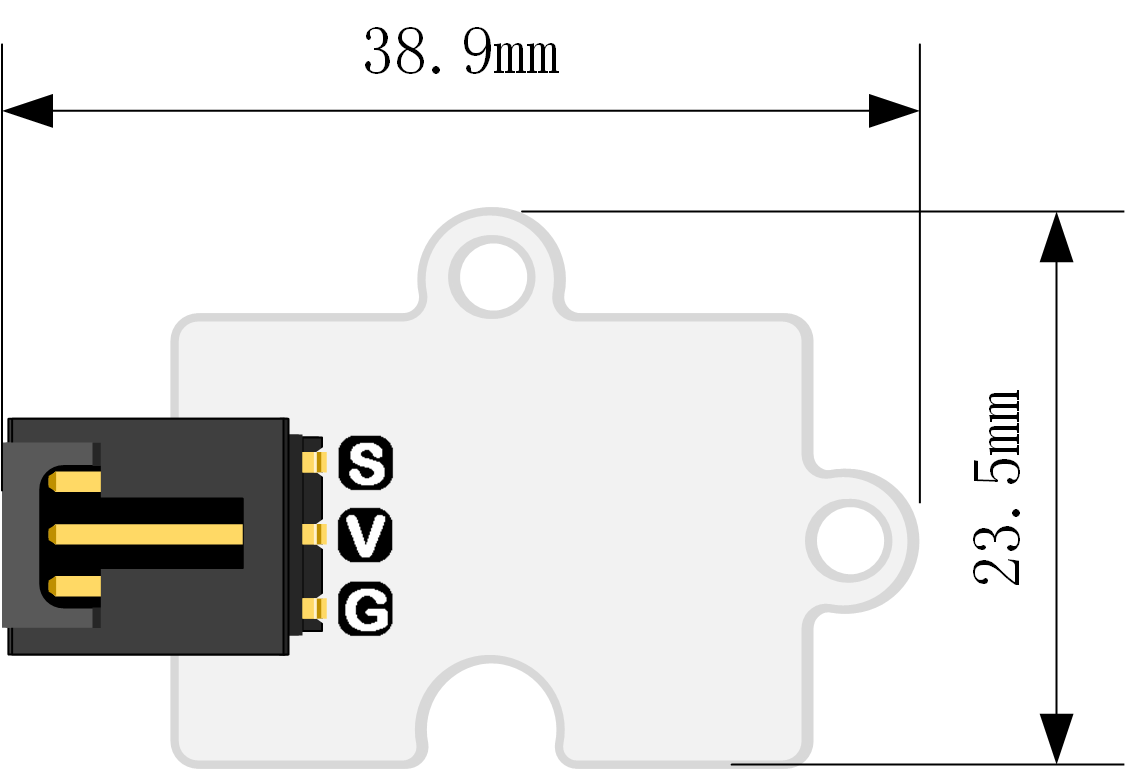

5.4. Outlook and Dimensions#


../../_images/IYYxw8r.png

5.5. Quick to Start#


Materials used and connection diagram#

  • Connect to the P1 port as the picture shows

    Take sensor:bit for example

../../_images/tUcPhzM.png

Add Package#

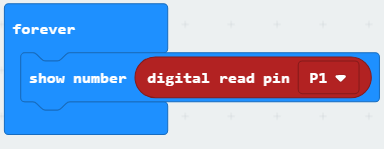

Program as the picture shows

../../_images/gkU4VNN.png

Reference#

Links: https://makecode.microbit.org/_8pkVmHELdVHd

You can also download the links below:

Result#

  • While the button being pressed, the status of the sensor button is showing on the micro:bit in number: 0 or 1.

5.6. Relevant Cases#


5.7. Technique Files#
