7. Case 03: Round Fly#

7.1. Introduction#


  • Program to make the drone fly to a preset place and then get back.

7.3. Picture#


../../_images/Drone-bit-02.png

7.4. Software Programming#


Click “Advanced” in the MakeCode drawer to see more choices.

../../_images/Drone-bit-case-01-01.png

For programming, we need to add a package: click “Extensions” at the bottom of the MakeCode drawer and search with “https://github.com/elecfreaks/pxt-Dronebit” in the dialogue box to download it.

../../_images/Drone-bit-case-01-02.png

Notice: If you met a tip indicating that some codebases would be deleted due to incompatibility, you may continue as the tips say or create a new project in the menu.

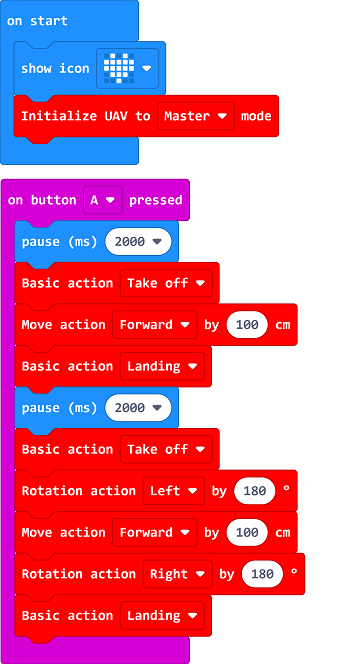

7.5. Program#


../../_images/Drone-bit-case-03-03.png

Notice: It is suggested to pause for 2 seconds or longer after triggering the take-off command to make sure the operator run away from the drones in case of any hurting accidents.

Link: https://makecode.microbit.org/_7zU0qEMPVcqT

You can also download it directly:

7.6. Result#


  • After taking off, it flys forward for 100cm and lands to the ground, then it starts flying back in 100cm by rotating 180 degress, then it lands to the ground.
