1.11. Case 09: Control the Car with an Indicator#

1.11.1. Purpose#


Build a car with the bricks and control it with the AI Lens via the indicators.

../../_images/05035_01.png

Materials Required and Connection Diagram#

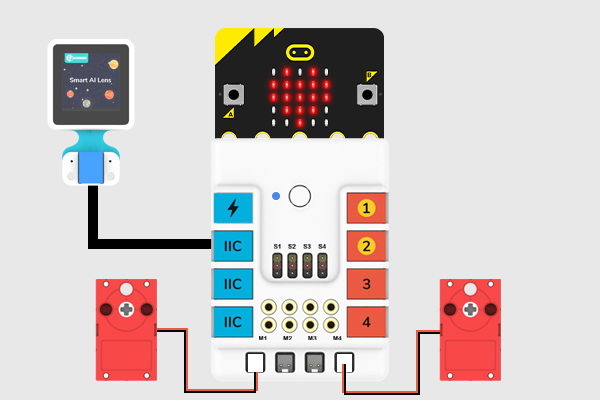

  • Connect the AI Lens to the IIC port and the two motors on M1,M4 ports on the Nezha expansion board as the picture shows.

../../_images/05035_09_01.png

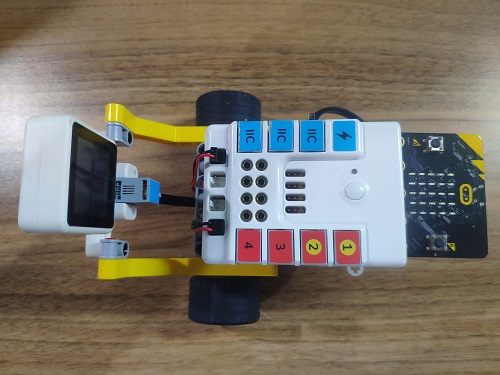

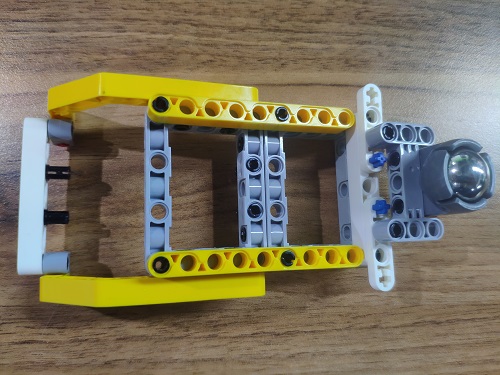

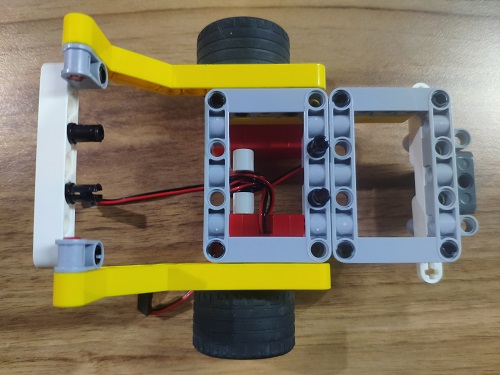

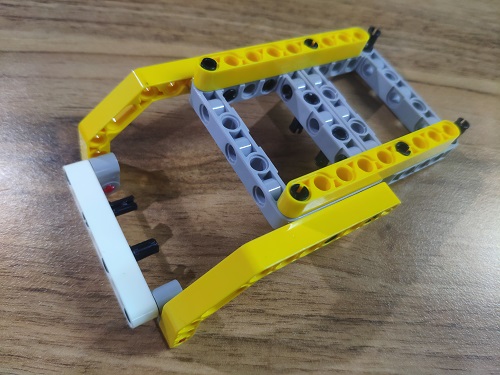

  • Build a car with the bricks below.

../../_images/05035_07_01.png

../../_images/05035_09_02.png

../../_images/05035_09_03.png

../../_images/05035_09_04.png

../../_images/05035_09_05.png

1.11.2. MakeCode Programming#


Step 1#

Click “Advanced” in the MakeCode drawer to see more choices.

../../_images/05001_041.png

We need to add a package for programming. Click “Extensions” in the bottom of the drawer and search with “PlanetX” in the dialogue box to download it.

../../_images/05001_051.png

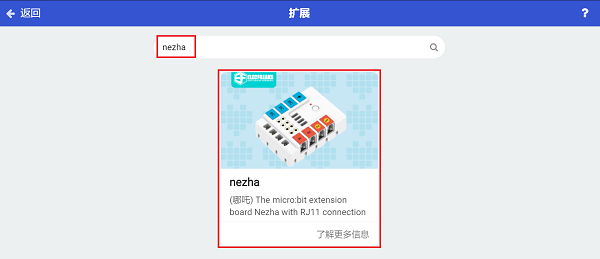

Then search with “nezha” to download this extension.

../../_images/05035_09_06.png

Note: If you met a tip indicating that the codebase will be deleted due to incompatibility, you may continue as the tips say or build a new project in the menu.

Step 2#

Code as below:#

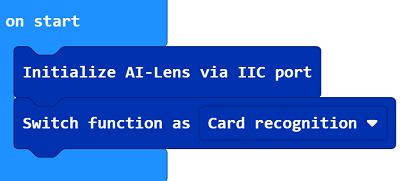

  • Initialize the AI lens while on start and switch its function to Card recognition.

../../_images/05035_09_07.png

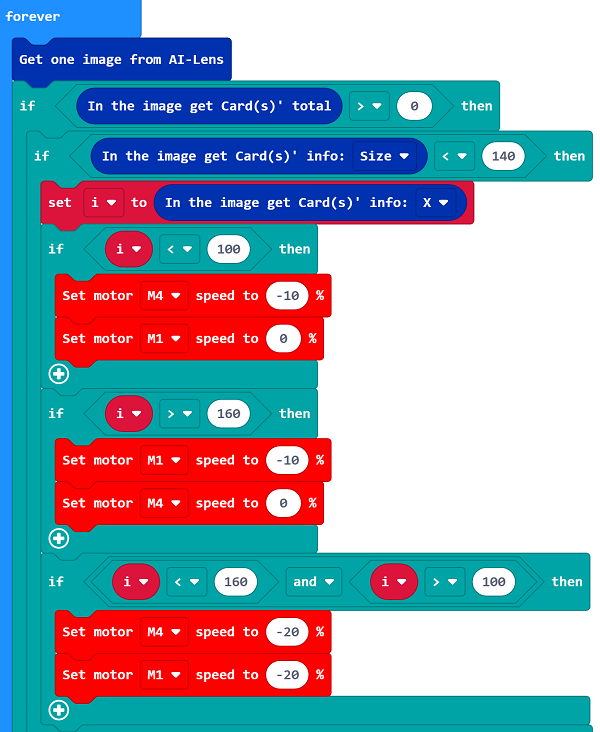

  • Get one image from the AI Lens, if the card is detected, judge the distance from the card to the car. If it is a long distance, the lens would get the value of the “X-axis”and respond it by adjusting the speed of the two motors to keep the image in the middle of the lens.

../../_images/05035_09_08.png

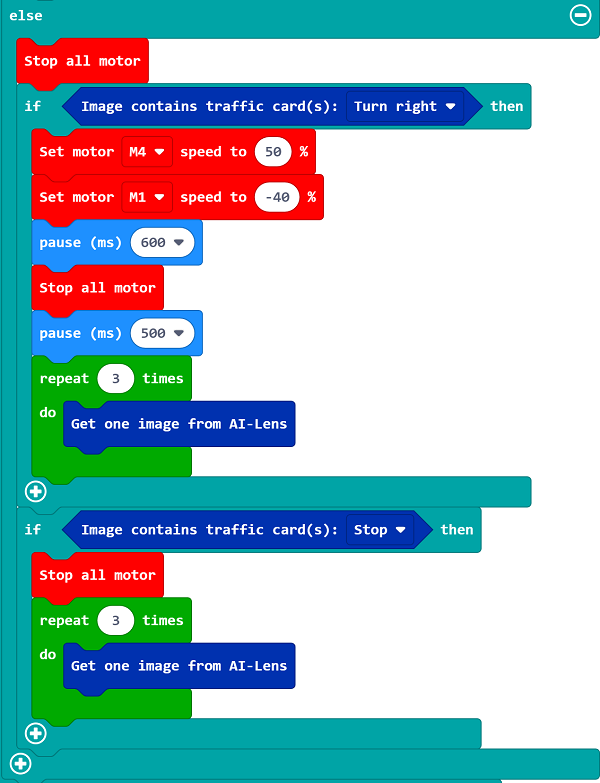

  • If the car is near to the card, judge the instructions(symbols) on the card. If it is a turn-right instruction, make the car turn right by adjusting the speed of the motors, then program to get 3 images from the lens and give no instruction to these three pictures to clear the caches. If it is a stop instruction, make the car stop moving by adjusting the speed of the motors, then program to get 3 images from the lens and give no instruction to these three pictures to clear the caches.

../../_images/05035_09_09.png

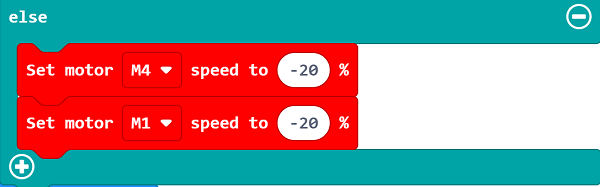

  • If the AI Lens does not detect any image, the car moves forward.

../../_images/05035_09_10.png

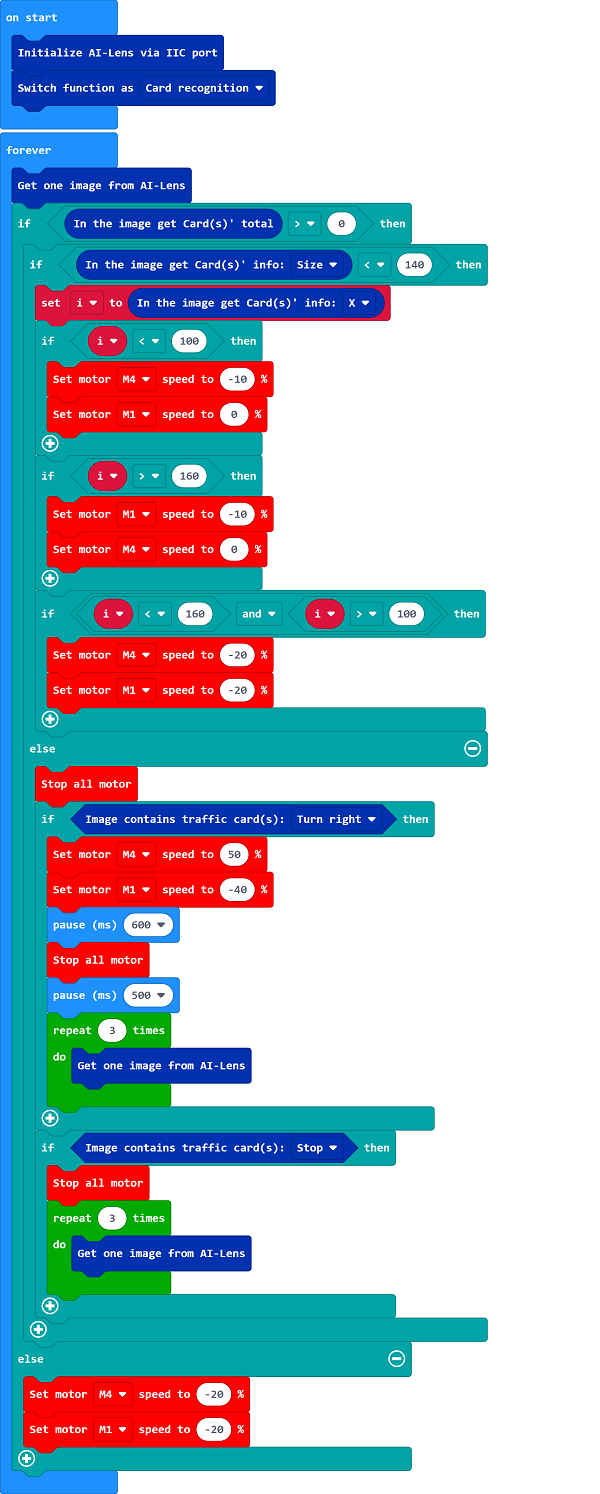

Completed Code:

../../_images/05035_09_11.png

Result#

  • Drive the car and make it move with the instructions.
