DIY is Fun: ELF II VRDrone with Smartphone Control
Wanna build a drone of your own? Wanna taste the fulfillment of DIY? Well, here is your chance. ELF II VRDrone kit for education is now online on our website, or if you’re just lazy, you can just buy a finished product here.
Unpack ELF II VRDrone

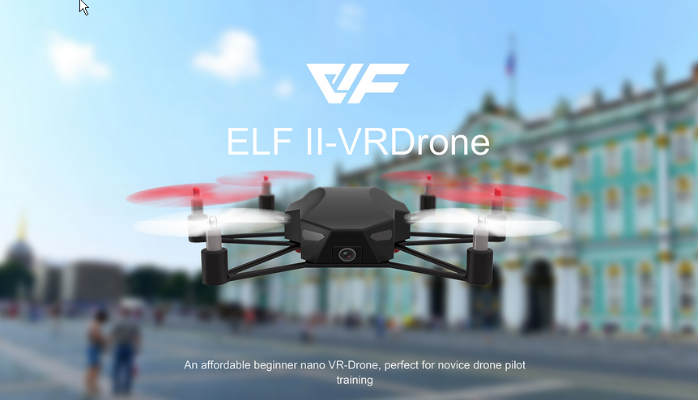

First let’s take a good look at this magic product. The smartphone-controlled drone—a mini hexacopter measuring just 5 inches across—is equipped with an onboard camera offering full HD 720p video. In-flight, the drone transmits a live video feed to your smartphone via Bluetooth. The drone itself is controlled by Wi-Fi, and can be connected to two smartphones at once for a virtual-reality experience and first-person-view flying.
![[object Object]](https://elecfreaks.com/wp-content/uploads/content/MD-26386_20160902092911_7b7f90f56cfc8856.jpg)
![[object Object]](https://elecfreaks.com/wp-content/uploads/content/MD-26386_20160902130245_5847b6b386acd5fc.jpg)
![[object Object]](https://elecfreaks.com/wp-content/uploads/content/MD-26386_20160902092851_24da8589f03d4344.jpg)
Features
- Palm-size selfie drone can be charged with a charger pal
- Smartphone control with gesture interaction
- Support one-button takeoff function, altitude hold function
- 1MP HD camera, 720P video
- Real-time shooting videos, taking pics, and social sharing
- Virtual reality 3D FPV
![[object Object]](https://elecfreaks.com/wp-content/uploads/content/MD-26386_20160902092911_026cda7a0f708fc2.jpg)
![[object Object]](https://elecfreaks.com/wp-content/uploads/content/MD-26386_20160902092910_79e6ae79dd8eb5c0.jpg)
![[object Object]](https://elecfreaks.com/wp-content/uploads/content/MD-26386_20160902092912_c081df91a9f35992.jpg)
Included in the Box
- Elf II VRDrone with battery (kit or assembled)
- USB charger cable
- 4 blades
- 1 manual
- Massdrop 1-Year Limited Warranty
![[object Object]](https://elecfreaks.com/wp-content/uploads/content/MD-26386_20160902092910_8dba46e34ee7bb9f.jpg)
Specification
Drone
- Flight time: 8 min
- Control distance: 30 m
- Max altitude: 30 m
- Altitude hold accuracy: +/- 0.1 m
- Working temp: 0 – 40º C
- Dimensions: 5.1 x 4.7 x 1.2 in (130 x 120 x 30 mm)
- Wi-Fi frequency bands: 2.4GHz
- Bluetooth: BLE 4.0
Camera
- Image sensor: ¼-in CMOS WXGA (1MP) HD sensor
- Lens: FOV88º 30 mm F/2.4
- Camera angle: -15º (level downard)
- Max photo resolution: 1MP
- Photo shooting: Single camera
- Video capture mode: HD video capture
- Video resolution: 720p @25fps
- Storage format: JPG/AVI (H.264)
- Storage capacity: SD support 32G
Battery
- Rated capacity: 900mAh
- Rated energy: 3.78Wh
- Nominal voltage: 4.2V
- Battery type: LiPo 1S
- Charging ambient temp: 0 – 45º C
- Discharge ambient temp: 0 – 45º C
App
- Voltage: 5V
- App name: ELF-VRDrone
- Real-time image transmission: 640 x 480 @25fps
- Delay: 160 m
- System version of mobile: Android 4.3 and above, iOS 8.0 and above
- Hardware requirement: Bluetooth 4.0
Students DIY in progress
ELF II VRDrone Illustration
