BLEduino User Guide
January 10, 2019Back from 1st Global Sources Mobile Electronics Fair

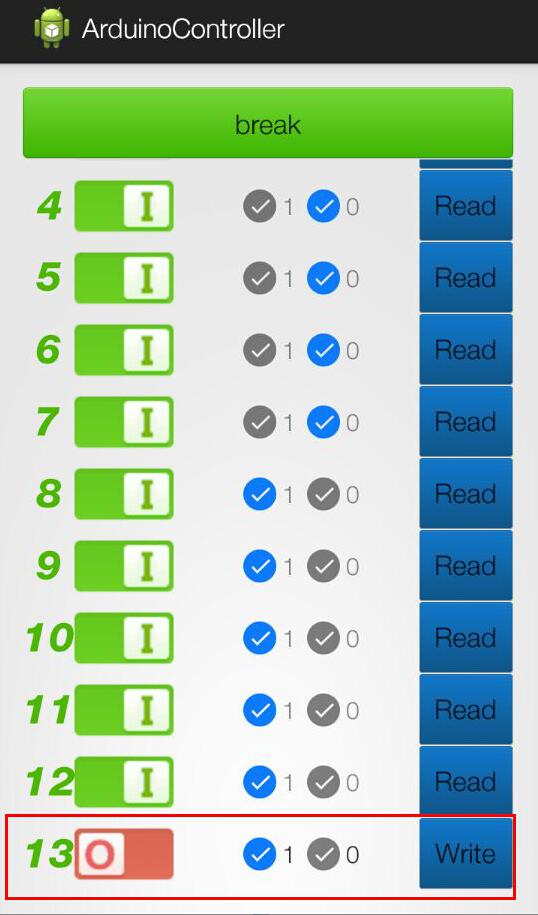

January 10, 2019Bluetooth 4.0-BLE is by now the most commonly used solution for smart home and smart wristband. ElecFreaks will launch series BLE-related modules, aiming to help makers in creating their own prototypes. Also, we offer BLE module, relevant documentation, and a pretty fine APP for learning and experiment. ElecFreaks BLE app can be used easily to set any IO port for BLEduino, to control relays, RGB LED and output acceleration data….so it is very practical. The android app is releasing very soon, for IOS, our developer account is under
application, which probably will take another 2 weeks.
Here’s the description:
It’s time to get Bluetooth 4.0 into your project, together with your phone! For aficionados of smart devices and wearables, now you can go further than hacking things bought in the market to building your own prototype out of garage. The BLEduino board is first of its kind in intergrating BT 4.0(BLE) module into Arduino Uno, making it an ideal prototyping platform for both software and hardware developers to go wireless. You will be able to develope your own smart bracelet,smart pedometer and more. Through the low- power Bluetooth 4.0 technology, real-time low energy communication can be made really easy. The BLEduino integrates with a TI CC2540 BT 4.0 chip with the Arduino UNO development board. It allows wireless programming via BLE, supports Bluetooth HID, supports AT command to config the BLE, and you can upgrade BLE firmware easily. The BLEduino is also compatible with all Arduino Uno pins which means any project made with Uno can directly go wireless! Whatsmore, we also developed the App for the BLEduino (both Android and IOS), and they are completely opensource, so that you can modify and develope your own BLE-hardware platform. Below is a quick demo video covering some of the major features of BLEduino with the help of an Accessory Shield for BLEduino, which will also be available very soon. In short, you can use BLEduino with any Bluetooth 4.0 compatible devices and enjoy features such as wireless transmission, master and slave settings, wireless burning, and even establishing a Bluetooth HID connection with the PC.
